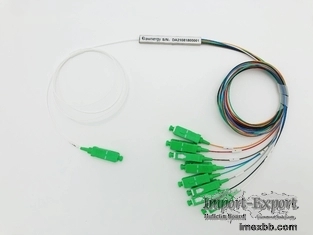

1xN 2xN Mini Type PLC Splitter With Connectors

Mini type 1xN 2xN PLC splitter with connectors TELCORDIA 1209&1201 STANDARD



Dawnergy’s planar light wave circuit (PLC) splitter is optical power
management device which uses silica optical waveguide technology. It has
small size, high reliability, wide operating wavelength range. It is widely
used in PON networks and realizes optical signal power splitting.


Features:

Low insertion loss
Low PDL
Good channel uniformity
High-reliability and stability
Qualified according to Telcordia 1209 and 1221 requirements
Parameters 1x2 1x4 1x8 1x16 1x32 1x64
Operating Wavelength(nm) 1260~1650
Insertion Loss (dB) Typical 3.6 6.8 10 13.1 16.2 20
Max(P/S) 3.8/4.0 7.2/7.4 10.5/10.7 13.6/13.7 16.5/16.8
20.5/21.0
Uniformity (dB) Typical 0.3 0.4 0.5 0.6 0.8 1.2
Max 0.4 0.6 0.8 1.2 1.5 2.5
PDL (dB) Typical 0.1 0.1 0.15 0.15 0.15 0.2
Max 0.2 0.2 0.3 0.3 0.3 0.4
Return Loss (dB) Min 55
Directivity (dB) Min 55
Fiber Length (m) 1 (+/-0.05) or customer specified
Fiber Type ITU-T G657A1 or customer specified
WDL (dB) Typical 0.2 0.2 0.2 0.3 0.3 0.3
Max 0.3 0.3 0.3 0.5 0.5 0.5
TDL (dB) (-40~85℃) Typical 0.2 0.2 0.2 0.3 0.3 0.3
Max 0.4 0.4 0.4 0.5 0.5 0.5
Operating Temperature (℃) -40~85
Storage Temperature (℃) -40~85
Packaging Size(mm) Bare Splitter 40x4x4 50x7x4 60x12x4
Mini Module 60x7x4 60x12x4 80x20x6 100x40x6
Cassette Type 100x80x10 120x80x18

Parameters 2x2 2x4 2x8 2x16 2x32 2x64
Operating Wavelength(nm) 1260~1650
Insertion Loss (dB) Typical 3.7 7 10.8 13.6 16.8 20.5
Max(P/S) 3.9/4.2 7.5/7.8 11.2/11.5 14.2/14.5 17.4/17.7
21.0/21.5
Uniformity (dB) Typical 0.5 1 1 1.2 1.5 2.2
Max 0.6 1.2 1.5 1.8 2 2.7
PDL (dB) Typical 0.1 0.1 0.2 0.3 0.3 0.3
Max 0.2 0.2 0.4 0.4 0.4 0.4
Return Loss (dB) Min 55
Directivity (dB) Min 55
Fiber Length (m) 1 +/-0.05 or customer specified
Fiber Type ITU-T G657A1 or customer specified
WDL (dB) Typical 0.3 0.3 0.3 0.5 0.5 0.8
Max 0.4 0.4 0.5 0.6 0.8 1.2
TDL (dB) (-40~85℃) Typical 0.3 0.3 0.3 0.4 0.4 0.4
Max 0.4 0.4 0.4 0.5 0.5 0.5
Operating Temperature (℃) -40~85
Storage Temperature (℃) -40~85
Packaging Size(mm) Mini Module 60x7x4 80x12x5 100x20x6
100x40x6
Notes: 1. Measurements are done at room temperature. Connector loss is
excluded in the above specifications.
2. S=Standard grade, P=Premium grade
