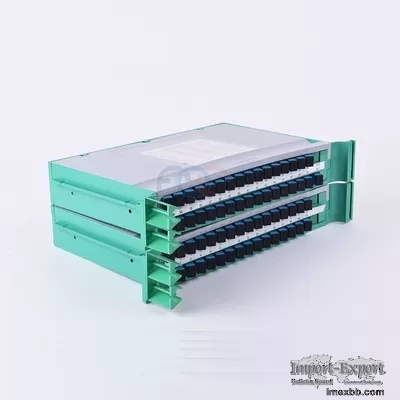

FTTH Pallet Fiber PLC Splitter 1650nm 19" Rack Mount 1x64 SC UPC

Product Description
Pallet PLC Splitter, 19" Rack Mount 1x64 SC / UPC, Used for FTTH



Pallet type fiber optic PLC splitter has no open wire, the fiber optic cable is
in a metal box with many high quality optical fiber adapters. According to the
quantity of the adapters it mounted, It will be fixed to the fiber optic splice
outdoor cabinet or optical distribution frame. The tray type PLC splitter can
be inserted into the fiber optic tray directly. It is suitable for various
types of optical fiber splitter, wave demultiplexer and other integrated
installation and use.


FOC COMMUNICATION CO., LTD provides a various of 1xN and 2xN PLC 1U rack mount
type splitters, including 1x2, 1x4, 1x8, 1x16,1x32,1x64 1U rack mount type PLC
splitter and 2x2, 2x4, 2x8, 2x16, 2x32, 2x64 1U rack mount type PLC splitters.



Features
Configuration Pallet Type 1x64
Fiber Type Single Mode G.657A1
Connector Type SC/APC

Low Insertion loss
Low PDL
High Return Loss
Uniform Power Splitting
Compact Design
Wide Operating Wavelength
Wide Operating Temperature
Excellent Environmental & Mechanical Stability
Qualified Under Telcordia GR-1221 and GR-1209



Applications

Telecommunications
, Local area network
Fiber to the home
Video transmission
Fiber optic sensing
Testing instruments
CATV


Optical Specifications

Parameter

Unit

Specification (P Grade)

Channel Number



1X2

1X4

1X8

1X16
< , br>1X32

1X64

Operation Wavelength

nm

1260～1650

Ins , ertion Loss (Max.)

dB

4.3

7.4

10.7 ,

13.9

17.2

21.5

Unifor , mity (Max.)

dB

0.5

0.8

1.0< , br>
1.4

1.6

2.0

Polarizati , on Dependent Loss

dB

0.2

0.3

0.3

0.3

0.3

0.5

Return Loss

dB

≥50

Directivity
,
dB

≥50

Operating Temperature

℃

-40～+85

Sto , rage Temperature

℃

-40～+85



Parameter

Unit

Specification (P Grade)

Channel Number



2X2

2X4

2X8

2X16
< , br>2X32

2X64

Operation Wavelength

nm

1260～1650

Ins , ertion Loss (Max.)

dB

4.3

7.6

11.0 ,

14.8

17.9

21.5

Unifor , mity (Max.)

dB

0.8

1.0

1.2< , br>
1.5

1.8

2.0

Polarizati , on Dependent Loss

dB

0.2

0.3

0.3

0.3

0.3

0.5

Return Loss

dB

≥50

Directivity
,
dB

≥50

Operating Temperature

℃

-40～+85

Sto , rage Temperature

℃

-40～+85

Not , e: All the data above does not include connectors.

Ordering Information

PLC















Port

Fiber Type

Input

Output

Pigtail Length

Connector





PLC

0102=1x2
0104=1x4
0108=1x8
0116=1x16
0132=1x32
0164=1x64
0204=2x4
0208=2x8
0216=2x16
0232=2x32
0264=2x64< , br>
1=G652D, 2=G657A

L=900µm Loose tube, S=2.0mm, R=3.0mm, 0=Adapter

L=900µm Loose tube, S=2.0mm, R=3.0mm, 0=Adapter

05-20=0.5--2.0m, 0=Adapter, X=Others

FU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC, ST=ST/UPC, LU=LC/UPC, LA=LC/APC,
00=None, X=Others



FTTH Pallet Fiber PLC Splitter 1650nm 19" Rack Mount 1x64 SC UPC 0

We can produce many serials of PLC splitters including:
1X2, 1X4, 1X8, 1X16, 1X32, 1X64, 2X4, 2X8, 2X16, 2X32, 2X64 with following
package
Bare fiber series
Mini loose tube package
ABS Module type
LGX box type
Rack Mount patch panel for PON application.
Wall Mount patch panel for PON application
Inline fiber optic splice closure type
Erect fiber optic splice closure type
