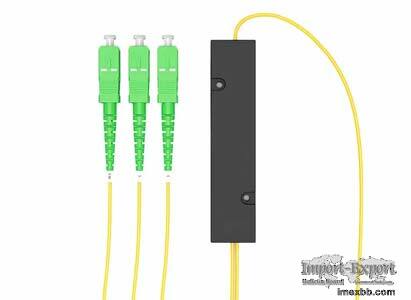

Fiber Optic Splitter

Optical fibre cable splitter is an integrated waveguide optical power
distribution device based on a quartz substrate. Like the coaxial cable
transmission system, the optical network system also needs to couple, branch
and distribute the optical signal, which requires an optical splitter to
achieve.

How Does A Fiber Optic Splitter Work?
When an optical signal is transmitted in a single-mode fiber, the light energy
cannot be fully concentrated in the core to propagate, and a small amount of
light energy is propagated near the fiber cladding. In general, when the cores
of two optical fibers are close enough, the optical signal transmitted in one
optical fiber can enter the other optical fiber, that is, the optical signal
can be redistributed in the two optical fibers, which is exactly The origin of
the optical cable splitter.

Multi-use of optical fiber cable splitter

01
The first-level fiber optic cable splitter is placed in the central office
computer room, and the second-level optical splitter is placed in the community
optical switch box;

02
The first-level optical splitter is placed in the computer room of the
community, and the second-level optical splitter is placed in the community
optical transfer box;

03
The first-level optical splitter is placed in the optical switch box of the
community, and the second-level optical splitter is placed in the corridor.


Welink is a professional fiber optic splitter manufacturers, we provide fiber
cable splitter, ofc splitter, fiber splitter cable, fiber optic networking
products, etc. For more info, contact us.

There are many fiber optic products manufacturers, but we are one of the best
choices for you.
