PLUG417

Uncooled Thermal Modules (Imaging Only）

GUIDE metal package infrared detector + professional hardware platform + unique
image processing algorithm = PLUG Series Uncooled infrared camera module. High
performance IR detector captures more target information. Professional hardware
platform and image algorithm ensure image clarity and details. The Plug series
come with various common industrial interface and IR lens options, which caters
for all specific integration requirements.

400x300IR resolution

12μm Pixel Pitch

＜30mK NETD

＜1.1WTypical Power Consumption

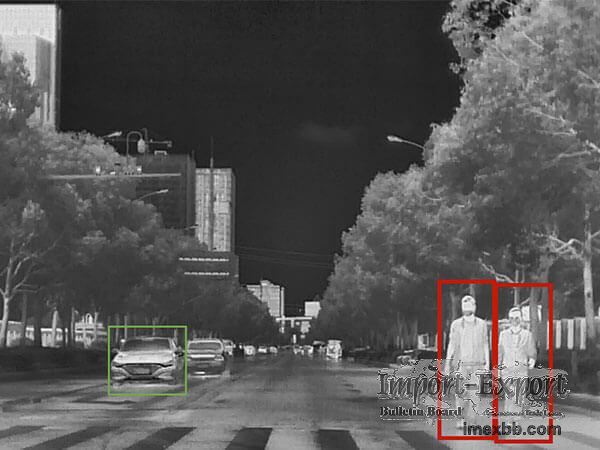

PLUG417 consisted of 400x300@17µm uncooled thermal imaging sensor, full series
of optical components, signal processing circuit and unique image processing
algorithm, the PLUG417 infrared sensor module provides clear image and superior
performance.

PLUG series thermal sensor camera modules are specially developed for various
personalized observation requirements, which provide various standard
industrial interfaces and infrared lens options to meet specific integration
requirements. Some professional thermal imaging solutions have been applied to
many applications.

Technical Parameters
Model
PLUG417
ADD TO COMPARE

IR Detector Performance
Resolution 640X512@17μm
Spectral response 8~14μm
NETD ＜30mk

Image Processing
Frame rate 9Hz/25Hz/30Hz/50Hz/60Hz
Start-up time ＜10s
Analog video PAL/NTSC
Digital video RAW/YUV/BT656/LVDS
Extension component USB/Camerlink
Dimming Linear/Histogram/Mixed three modes
Digital zoom 1~8X continual zoom，step size 1/8
Image display Black hot/White hot/Pseudo color
Image direction Horizontally/Vertically/Diagonally Flip
Image algorithm NUC, AGC, IDE

Image Display Performance
Communication mode RS232-TTL, 115200bps
Supply voltage 4.5~6V
Typical power consumpti <1.1W

Physical Characteristic
Dimension(mm) 44.5X44.5X36.6
Weight ≤77g
Operation temperature -40°C ~ +70°C
Storage temperature -45°C ~ +85°C
Humidity 5%~95%，non-condensing
Vibration Random Vibration 5.35grms，3 axis
Shock Half-sine wave，40g/11ms，3 axis 6 directi

Optics
Optional lens Fixed focus athermal：
7.5mm/13mm/19mm/25mm/35mm/50mm/60mm , /100mm;Motorized
lens75mm/100mm/150mm;Continuous optical zoom：30-150mm
* All specifications are subject to the actual product. Guide sensmart
reserves the right to change the technical specifications without notice or
liability to you.

For more information about guide sensmart technology gmbh, please feel free to
contact us!

Minimum Order: 50000 sets
