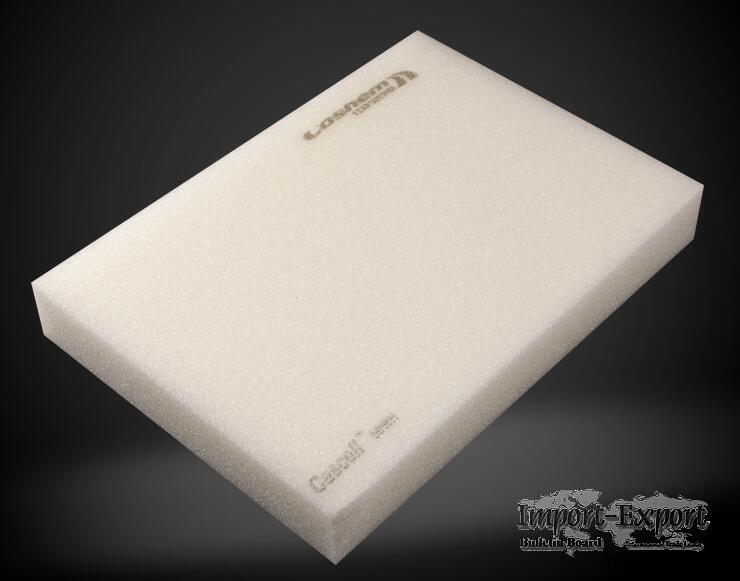

PMI Foam CASCELL® WH

Cascell® WH foam core has been specifically designed for aerospace
application, such as fairing and middle section of launch vehicle. It can
also be used in back pressure frame of large civil plane due to its
excellent mechanical properties. In the helicopters, Cascell® WH has been
mainly used in main & tail rotor blades and fuselage panelsetc.

Cascell® WH can take curing temperature up to 130°C and pressure up to
0.3MPa. After heat treatment, Cascell® WH can even be cured at temperature
of 180°C and at pressure of 0.7MPa.

Cascell® WH core makes it possible to produce sandwich components in a
single step (co-curing), resulting in reduced overall production time.

Cascell® WH is highly suitable with autoclave technologies and vacuum
infusion processes, including RTM and VARTM processes.

Compressive creep testing conditions：
Cascell® 50WH, 130℃/0.3MPa/2h
Cascell® 75WH, 150℃/0.3MPa/2h
Cascell® 110WH, 180℃/0.3MPa/2h

Minimum Order: 1000 pieces
