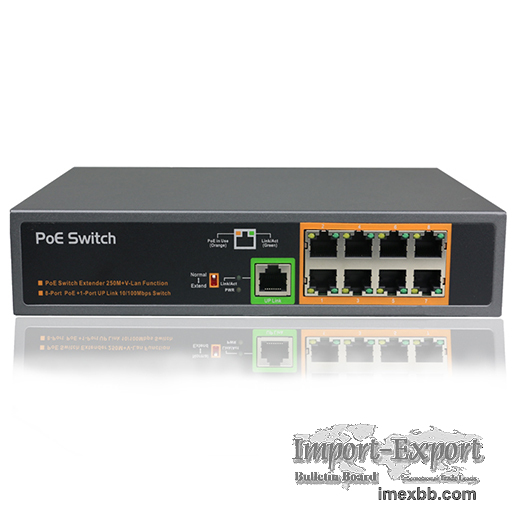

POE SWITCH PSE908EX 9-port 100M POE switch standard IEEE802.3AT built-in 15

PSE908EX is a 9-port 100 Mbps unmanaged PoE switch independently developed by
Shenzhen Lego Network Technology Co., Ltd. It provides 9 10/100M adaptive RJ45
ports, each of which supports MDI/MDIX automatic flipping function and can
achieve line speed forwarding. Ports 1-8 have PoE function, support IEEE802.3af
standard, can be used as power over Ethernet equipment, can automatically
detect and identify power receiving equipment that meets relevant standards,
and supply power to it through network cable. The PSE908EX is simple and
convenient to use, without the need for configuration, plug and play, and can
flexibly expand home and office networks without being limited by power line
layout.



• Port performance

Provide 9 10/100M adaptive RJ45 ports, ports 1-8 have PoE function, and port 9
can be used as an uplink port, greatly improving the utilization rate of PoE
power supply ports;

Each port supports MDI/MDIX automatic flipping and self negotiation;

Supports IEEE 802.3x full duplex flow control and Backpressure half duplex flow
control.



• PoE performance

Support IEEE802.3af standard;

Automatically detect and identify PD devices that comply with IEEE 802.3af
standards and provide power to them;

Supports 8 ports to achieve IEEE802.3af standard full load (15.4W) power
supply, with a total power of 150W;

Intelligent power management. If the power of the receiving device exceeds
123W, the system activates a priority mechanism to cut off the power supply to
ports with lower priority.



• Two working modes

Provide mode switching switch, supporting two working modes: "normal switch
mode" and "V-LAN mode";

When the standard switching mode is enabled, the switch is a regular non
managed switch, and ports 1-9 can communicate with each other;

Enable VLAN isolation mode, switch to MTU VLAN, and ports 1-8 can only
communicate with port 9 of the uplink port;

When enabling video monitoring mode, adjust the switch buffer to adapt to video
monitoring applications and enable MTU VLAN.
