Porous Sintered Metal Disc Sintered Metal Powder Discs

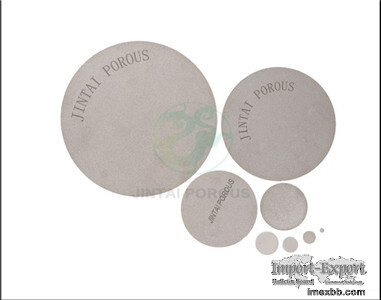

Porous Stainless Steel Discs

The porous metal discs of Jintai Company can be customized in various
specifications according to customer requirements, and the parameters such as
diameter, thickness, material and grade can be changed to meet customer process
requirements. In addition, the discs can be encapsulated in various metal or
non-metal parts for use.

Specifications
Material selection Titanium
Stainless steel:316L, 304L, 310S, 321, 904L
Hastelloy C22 C276 X
Inconel 600
Monel 400
Nickel
Other materials required by the customer
Filtration Grade 0.1um 0.3um 0.5um 1um 3um 5um 10um 15um 20um 30um 50um
80um 100um
Other grade required by the customer
Data & Specifications Diameter: Min. 2mm, Max. 450mm
Thickness: Min. 1mm,  Max. 20mm
Other specifications and sizes required by customers

The company's business covers all provinces in China, and some products are
exported to Germany, Italy, Spain, India, Taiwan and other places. Some large
domestic companies have designated the company's products. The company's
products mainly include titanium filter, stainless steel filter, sparger,
filter, filter device and system, sheet and disc, saucer-shaped filter disc,
aeration ring and so on. Products are widely used in medicine, metallurgy,
petroleum and petrochemical, fine chemicals, food and beverage, air
purification, electronics industry, textile industry, water treatment and other
fields.
