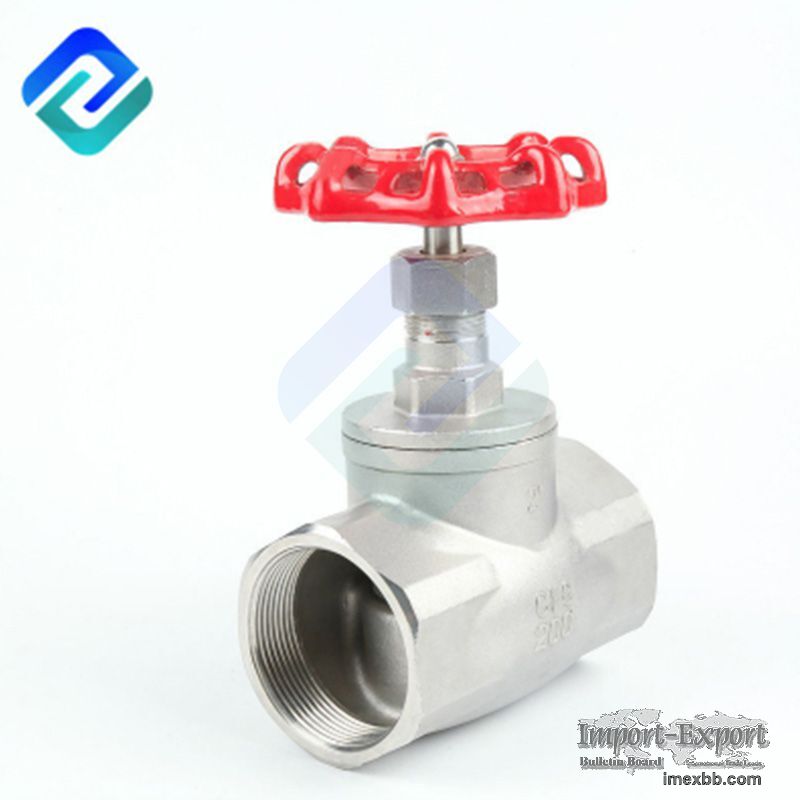

Precision casting internal thread globe valve

Precision casting internal thread globe valve
Cencho Stainless Steel Valve
The opening and closing part of the precision casting internal thread globe
valve is a gate. The movement direction of the internal thread globe valve is
perpendicular to the direction of the fluid. The precision casting internal
thread globe valve can only be fully opened and closed, and cannot be adjusted
or throttled. The internal thread globe valve has two sealing surfaces. The two
sealing surfaces of the most commonly used mode internal thread globe valve
form a wedge shape. The wedge angle varies with the valve parameters, usually
50, and 2 ° 52 'when the medium temperature is not high. The internal thread
globe valve of the wedge internal thread globe valve can be made as a whole,
called a rigid gate; it can also be made as a internal thread globe valve
that can produce a small amount of deformation to improve its manufacturability
and make up for the deviation of the sealing surface angle during processing.
The board is called an elastic shutter. The stainless steel internal thread
globe valve material is divided into 304 stainless steel gate valve, 316
stainless steel gate valve, 321 stainless steel gate valve. The representation
method is: Z41H-16P.

Investment castings for body and cap
Thread End:ANSI B2.1,BS21,ISO7/1
Pressure Rating:200PSI（PN16）
Working Temperature: -25℃ ~ +180℃

Material:CF8M,CF8,CF3M,WCB
Inspection Testing: API 598,EN 12266

Precision Casting Globe Valve Material List
ITEM PART MATERIAL QTY
1 BODY A216-WCB A351-CF8 A351-CF8M 1
2 DISC A216-WCB A351-CF8 A351-CF8M 1
3 STEM A216-WCB A351-CF8 A351-CF8M 1
4 CAP A216-WCB A351-CF8 A351-CF8M 1
5 GASKET PTFE 1
6 WASHER 304 1
7 STEM PACKING 304 1
8 RING 304 1
9 GLAND 304 1
10 WHEEL NUT 304 1
11 PLATE 304 1
12 HANDLE WHEEL ALUMNUM ALLOY 1

Dimension Table
SIZE D L H A KGS
DN6 1/4’’ 10 55 79 65 0.35
DN10 3/8’’ 12 55 79 65 0.35
DN15 1/2’’ 15 67 79 65 0.38
DN20 3/4’’ 20 75 91 77 0.50
DN25 1’’ 25 85 106 77 0.67
DN32 1-1/4’’ 32 101 125 97 1.15
DN40 1-1/2’’ 40 115 136 97 1.45
DN50 2’’ 50 136 155 97 2.15
