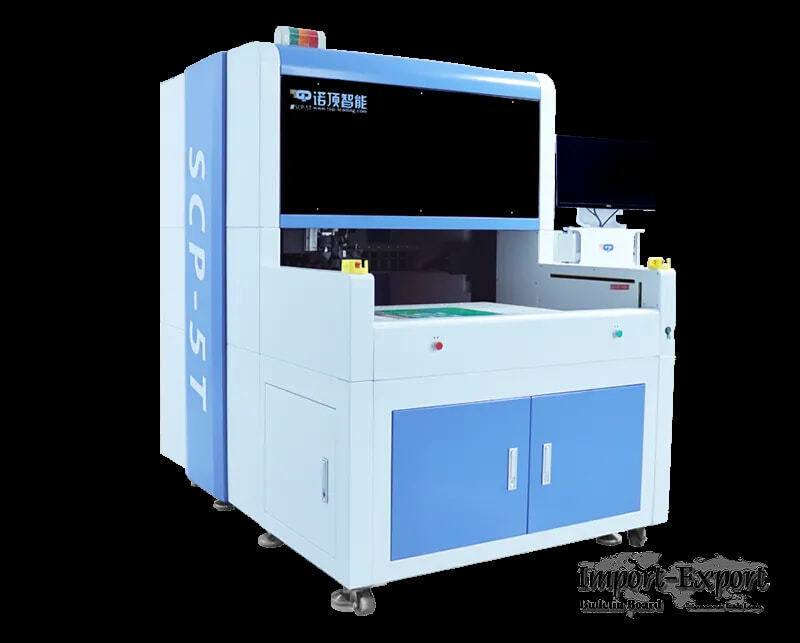

Press Fit Machine

Mainly used in the semiconductor packaging industry, it can be used for various
types of integrated packaging.
Automatic Press-Fit Machine — Precision, Speed, Reliability
Upgrade your production line with our Automatic Press-Fit Machine — engineered
for repeatable, high-throughput press-fit insertion with industry-grade
precision. Built for electronics and connector assembly where consistent force
control, part integrity, and uptime matter, our Press Fit Machine combines
servo-driven motion, integrated process monitoring, and flexible tooling to
deliver fast cycle times and near-zero defect rates.
Our Automatic Press-Fit Machine performs controlled press-fit insertions and
swaging operations with programmable force profiles, automatic head/tool
changes, and optional vision alignment — ensuring every connector or component
is seated correctly without board damage. It’s designed for both inline
SMT/PCB lines and stand-alone automation cells.
Key features
·  Servo-controlled press with force-profile management for repeatable,
measurable insertions and automatic reject on out-of-spec events.
·  High-precision positioning & optional vision guidance to align
pins/connectors before press-fit, reducing cycle rework.
·  Multi-head / multi-station configurations available for high throughput
(parallel insertion) or flexible one-off setups.
·  Smart process monitoring & data logging (SPC) — force/position
traceability for quality control and process optimization.
·  Modular tooling and quick-change fixtures so the machine adapts fast to
new connector types and board layouts.
·  User-friendly touchscreen HMI and PLC control with recipe management for
fast line changeovers.
Benefits for your factory
·  Reduce defects & rework — precise force control and vision alignment
protect expensive PCBs and components.
·  Increase throughput — configurable multi-head systems and fast cycle
recipes maximize production yield.
·  Improve traceability & compliance — built-in logging and reject handling
make audits and quality reporting simple.
·  Lower total cost of ownership — robust design, easy maintenance, and
modular upgrades keep downtime low.
