Prestressed Anchorages: Wedges, Anchor Head, Bearing Plate

A Prestressed Anchorages consist of wedges, anchor head and bearing plate for
transfer the post-tensioning force from the prestressing steel to the
structure.
In addition, Its including all accessories for grouting.
Furthermore, Stressing anchorage is the most common form of post-tensioning
system.
It is widely used in concrete structure and soil / rock retaining walls.
post tensioning anchorages consist of wedge, anchor head, bearing plate and
spiral reinforcement.

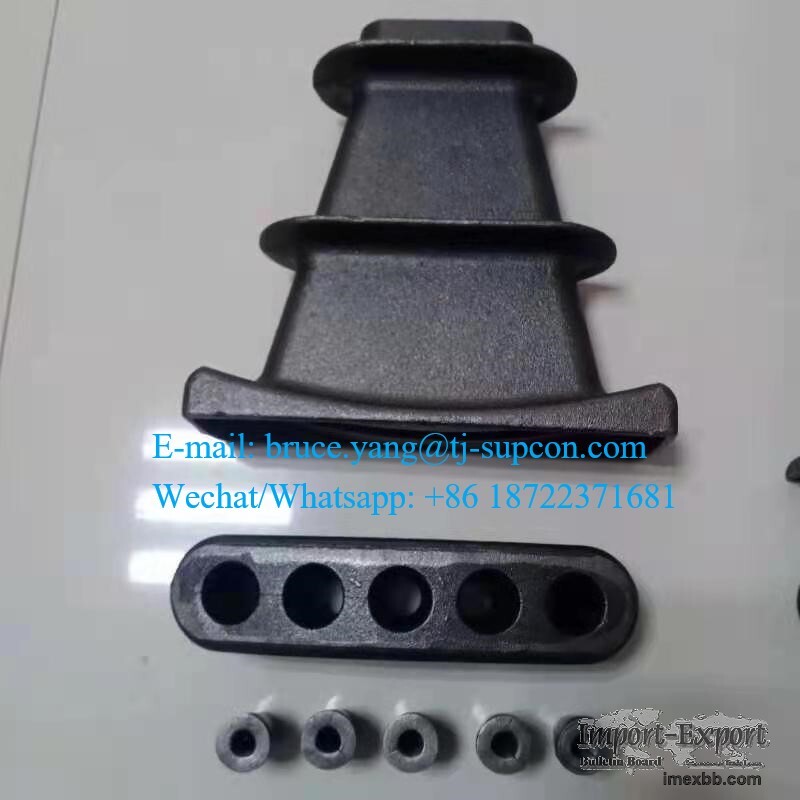

Flat Anchor:
The Flat Anchor accommodates a maximum of five strands in a single plane,
allowing them to deviate into one oval duct. This design is primarily intended
for use in thin structural members.
It is commonly employed in the transverse post-tensioning of the top slab in
box-girder bridges and prestressed flat slabs.
The system connects strands that run through steel or flat corrugated
galvanized steel ducts, which are manufactured in our facility.
Each strand is individually stressed using a mono-strand jack.
