Programmable Motor Driven Automatic Fire Monitor System

PRODUCT DESCRIPTION

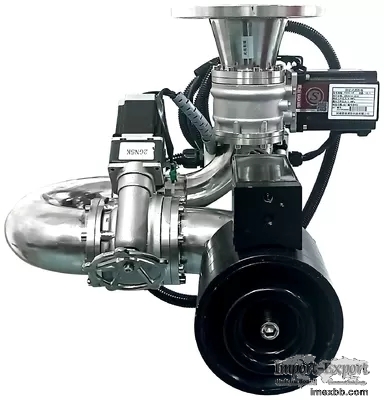

Programmable Motor Driven Automatic Fire Monitor For Extinguishing Fire

Automatic fire monitor


Quick Detail:

●365days uninterrupted video monitoring.

●360° horizontal rotate and 120° vertical rotate.

●High pressure and large range of 360° coverage.

●Infrared thermal imaging detecting technology ensure no miss alarming and no
fault alarming.

●Applicable voltage range:AC 110V~240V

●Multifunctions:Fire monitoring,Fire alarming and Fire extinguishing.

●Energe saving.

●Remote control and automatically run.


Description:

Our automatic fire monitor discharge large volumes of suppression agent from a
single fixed location, and at high pressure to give it an excellent range of
coverage.The automatic fire water monitor has built-in infrared thermal imaging
detector, UV flame detector, closed circuit television camera. Real time
dynamic flame location and laser corrector. The automatic fire water monitor
works with the external UV flame detector to eliminate the detection blind area
and increase early warning range.
When the automatic fire fighting monitor receives the fire early warning signal
(UV or IR) signal, the water monitor built-in image IR flame detector will
automatically rotate along with the water monitor and lock the flame for 3
seconds, then spray to extinguish the fire. Otherwise, the water monitor will
be considered as a false alarm, and the automatic fire monitor will reset
automatically.
Programmable Motor Driven Automatic Fire Monitor System 0

Programmable Motor Driven Automatic Fire Monitor System 1

Programmable Motor Driven Automatic Fire Monitor System 2



Specifications:


ZDMS0.6/5S-LZII ZDMS0.6/10S-LZII ZDMS0.8/20S-LZII
ZDMS0.9/30S-LZII ZDMS0.8/40S-LZII ZDMS0.8/50S-LZII
ZDMS1.0/60S-LZII
Working Voltage

DC36V DC36V DC24V DC24V DC24V DC24V DC24V
Rated Pressure 0.6MPa 0.6MPa 0.8MPa 0.9MPa 0.8MPa 0.8MPa 1.0MPa
Protection Radius ≤30m ≤35m ≤50m ≤55m ≤60m ≤65m ≤70m
Rate of flow 5L/s 10L/s 20L/s 30L/s 40L/s 50L/s 60L/s
Installation Height 6~15m 6~15m 8~35m 8~35m 8~35m 8~35m 8~35m
Jet radius ≤34m ≤39m ≤56m ≤62m ≤67m ≤73m ≤78m
Positioning time ≤30s ≤30s ≤60s ≤60s ≤60s ≤60s ≤60s
Monitoring radius 40m 40m 60m 60m 80m 80m 80m
Flange Connection DN50 DN50 DN80 DN80 DN100 DN100 DN100


Notices:

1.The side of automatic fire monitor with label”this side to wall” must be
faced to wall when installed.
2.Video line connected from DVR to cannon directly.
3.Signal lines must connect to signal lines of cannon where it is 2m from
cannon.
4.Operation panel installed near the exit and 1.5m from ground,and from where
operator can see all cannnons controlled by this operation panel.
5.Pls take care when handling cannon as there is UV detector at the bottom of
cannon.The UV detetor is fragile.
6.Make sure there is no barrier around the cannon to stop the cannon 360 degree
rotate.
7.The ground lead of DVR,earth wire and Lightning protection wire of control
console need be connected to your ground lead.



Applications:

Our automatic fire monitor are wildly used in Industrial,commercial and
residential fields.Such as airport, high-speed railway station, bus station,
hotel atrium, museum, library, TV studio, gymnasium, science and technology
museum, exhibition hall, convention center, theater, cinema, civic activity
center, industrial plant, chemical plant, gas station, oil port,helicopter
hangar, power plants, logistics centers, hospitals, large shopping malls,
commercial complexes, colleges and universities, coal mines, warehouses and
other places with large space.

Programmable Motor Driven Automatic Fire Monitor System 3

FAQ:

Q1: Are you a manufacturer?

A1: Yes. We are a professional manufacture of automatic fire water monitor
which has the most advanced technology.
Q2: What certificates do you have?
A2: We have CCCF and ISO certificates at present. All products tested by CHINA
National Fire Equipment Quality Inspection and testing Center
Q3: What are the advantages of your Intelligent Fire MonitorFire Water Cannon?
A3: Our Intelligent Fire Monitor adopt the Infrared thermal imaging detecting
and tracking technology. Our Fire Water Cannon integrates the following
functions: 1. Remote Video Surveillance. 2. Fire Alarm. 3. Intelligent Fire
Extinguishing.
