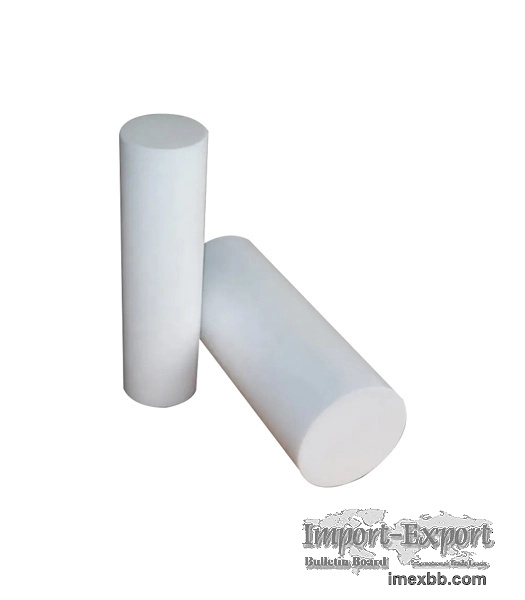

PTFE Molded Rods

In the field of electronics, PTFE moulded rod is often used in semiconductor
manufacturing process chip packaging, electronic components protection and
other aspects. Because PTFE molded rod has good high temperature resistance and
corrosion resistance, it can improve the reliability and stability of
electronic products.

In the field of chemical industry, PTFE molded rod is widely used in chemical
reactor, storage tank, pipeline, pump and other equipment. Because PTFE molded
rod has good corrosion resistance, it can withstand the corrosion of various
strong acids, strong bases, organic solvents and other chemical media, so as to
ensure the service life and safety of equipment.

In the automotive field, PTFE molded rod is often used in the sealing and
lubrication of automotive braking system, engine, steering system and other
components. Because PTFE molded rod has good high temperature resistance and
corrosion resistance, it can effectively reduce the wear and failure of
automobile parts and improve the reliability and safety of automobiles.

In the field of machinery, PTFE molded rods are often used in mechanical seals,
bearings, sliding rails, guides and so on. Because PTFE molded rod has good
non-adhesion and wear resistance, it can effectively reduce the friction and
wear of mechanical parts, so as to improve the service life and efficiency of
machinery.

Specification of the Molded PTFE Rods
Products name Specification(mm) Remarks
Diameter Length
PTFE bar Molded rods 16-200 100-300
210-300 ≦150
Hydraulic rod 50-300 500-1000 Outer diameter needs machine
procesing
Extrusion rods 20-80 <2000 The length can be customized

The Technical Indexes of the PTFE Molded Rods
Product name The implementation of standards The technical performance index
Remarks
The proportion of Tensile strength (Mpa) Crack
elongation(%)
Molded rods ZGB33003 SFB-1 2.10-2.30 ≥14 ≥140 QB/T 3626-1999
Molded pipe Company standard 2.15-2.25 ≥15 ≥150
Hydraulic rod/tube Company standard 2.10-2.20 ≥14 ≥150
Extrusion rods/tube Company standard 2.10-2.20 ≥15 ≥150

Feature of PTFE Molded Rods
PTFE rods and tubes are sintered with PTFE suspension resin after moulding or
hydraulic pressing, or extruded with PTFE presintered disperse resin by
plunger.

PTFE is commonly known as the king of plastics. It has many excellent features.

Usage of PTFE Molded Rods
Can be processed into a variety of seals, gaskets.

Electrical insulation electrical equipment parts.

Can also make a variety of chemical anti-corrosion, high temperature resistance
or anti-stick parts or products.

There are many ptfe plastic manufacturers in China, but we are one of the best
choices for you.

Now the price of ptfe products is reasonable, anything you need, please leave
us a message.
