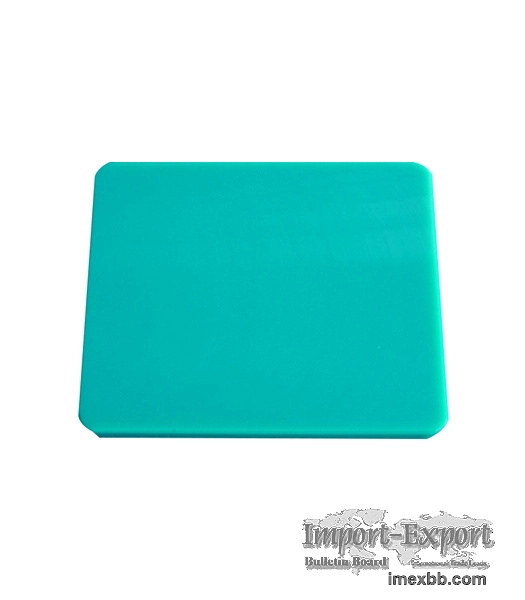

UHMWPE Molded Sheet

UHMWPE Molded Sheet
Molded UHMWPE sheets find extensive use in a wide range of industries,
including automotive, food processing, packaging, marine, construction, and
transportation. They are commonly utilized for applications such as wear
strips, guide rails, liners, slide plates, bumpers, and various structural
components.

Mechanical Properties of UHMWPE Molded Sheet
Indications name Unit Test method Indicators
Density g/cm³ ASTM1505 0.94
Fracture strength Mpa D638 42
Elongation at break % D638 350
Impact strength Kj/m² D256 ≥100

Types and Specifications of UHMWPE Molded Sheet
Boards: have molded plate and extrusion plate two class.
The name of the project Unit The shape size (length*width*thickness) Remarks
Moulded board mm 4200*1035 (6-200)
mm 4200*1250 (6-180)
mm 3150*2040 (6-150)
Extrusion board mm Width 113*thickness 3*unlimited length
mm Width1030*thickness 6*unlimited length

Features of UHMWPE Molded Sheet
UHMWPE plastic is a thermoplastic engineering plastic, which integrates the
superior properties of all plastics. The five characteristics of impact
resistance, wear resistance, chemical corrosion resistance, self-lubrication
and impact absorption performance are the highest values of all existing
plastics at present.

Cold tolerance:

UHMWPE can even act in liquid nitrogen or liquid nitrogen, its use temperature
can reach below -269 ℃, still has a certain mechanical strength.

Wear resistance:

UHMWPE has excellent wear resistance, the higher the molecular weight, the
better the wear resistance of the material.

Bibulous rate:

UHMWPE has very low water absorption.

Excellent resistance to chemical corrosion properties:

UHMWPE chemical stability is very high, in a certain temperature, concentration
range can resist acid, alkali, salt and other corrosive media.

UHMWPE tasteless, non-toxic, odorless, no corrosive in itself. The US food and
drug administration(FDA) and the United States department of agriculture (USDA)
allows it for special occasions in contact with the food and drug. Therefore,
UHMWPE is suitable for food, medicine and other industies with higher
requirements for hygiene conditions.
