PTO Shaft Replacement Of Weasler 35 Series

PTO Shaft Replacing for Weasler 35 Series

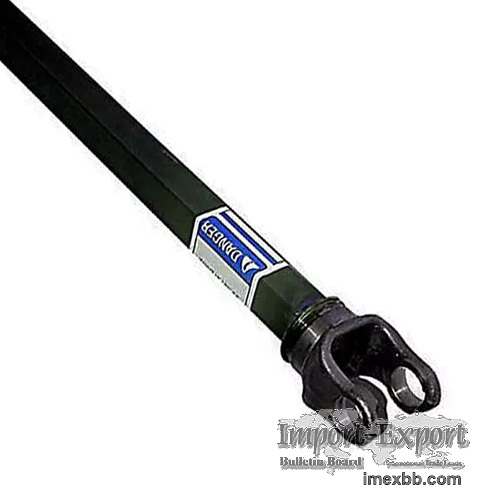

The 35 Series Yoke & Tube Assembly is an extremely durable PTO shaft yoke
built to last. This PTO Yoke has an 1-2/9 inch. square bore that makes it
easy to connect.

The length of the shaft is Centerline (Center of Ear hole to rear of the
tube) 34-2/3 inches.
Tube Outer Diameter 1-9 in.
Tube Inner Diameter 2-9 inches. square
The PTO drive shaft yoke runs at 108 kilowatts/81 HP at 1000RPM or 70 HP/52
Kilowatts @ 540 RPM for maximum efficiency.
Weight of PTO's yoke: 12.06 lb.
How Does Tractor PTO Shaft Work?
The PTO shaft is the one that transfers the power of your tractor onto the
machine you prefer. This PTO driveline is the place that everything else
that requires power from a tractor gets its energy from. PTO drivelines can
be ignored during routine maintenance checks because they are so important
when operating farm equipment.

PTO Shaft Size Importance
It is essential to have the right dimension, no matter what task you'll use
the PTO shaft for. The manufacturer will provide length recommendations to
help to get an idea. When measuring the length of a PTO shaft, you can use
the tape measure and take measurements from the outside of the yoke to
determine the length that is closed. The series size should match to the
amount of horsepower that your tractor is equipped with. Two speeds are
employed the most often for tractor PTO shafts. the 540 PTO shaft as well as
the PTO shaft that runs at 1000 rpm.

What are the components of the PTO Tractor Shaft Drive Shaft?
1. The tractor yoke PTO assembly begins with this kind of yoke. It is
attached to the tractor and is used to connect to the power train. There are
two primary kinds of tractor yokes. One type includes a spring lock which
utilizes a spring-loaded neck to join and unhook the yoke. The second is a
quick-to disconnect, which connects using a pushpin.
The tractor yoke could be identified as a six-spline, 20-spline or 21-spline
to indicate the way it connects to the connector to the tractor. It is
identified by counting the notches in the collar of the yoke.
2. Kit for Bearing and Cross- This u-joint is used to connect the yokes
within the PTO assembly. Its cross-bearing kit could contain a snap ring
within the bushing internally or externally. This means that it is located
in the ear that connect the yoke.
3. Shaft Yoke - A cross and bearing kit joins the tractor yoke and the shaft
of driveline.
4. Shaft - The shaft is the rod made of steel that is located at the heart
of the driveline that provides its length as well as connecting the yoke to
the attachments.
5. Tube-The shaft goes through this cylinder of steel, adding an extra layer
of protection to the driveline
6. Tube Yoke- Connected to the tube's tip it connects the driveline and the
device by using a cross that is connected to a bearing kit.
7. Implement YokeThe Implement Yoke links the driveline and the device or
machine which is operated by the tractor.
8. Guard- A tough plastic covering is positioned around the driveline to
protect it from the driveline from being damaged during operation.

What is the best way to tell whether an PTO Shaft is North American or
Metric?
The easiest way to determine whether the PTO belongs to North American or
metric is to identify its design of the tubingand shafting. A PTO is
considered to be domestic in the event that the tubing or shafting is
rectangular, square or hex-shaped. It can also be splined. It is metric when
the tubing/shafting is an oblong, lemon or star-shaped. There are two types
of metrics drivelines that are Germany-style (Walterscheid label) as well as
Italian-style (Bondioli and Pavesi). The German-style tubing comes with star
and lemon profiles and the Italian features a bell-shaped style.

How do you measure the PTO Shaft?
Make two measurements from the U-joint on the tractor, or the driving end of
the PTO Shaft:

Find the bearing Cap diameterMost U-joints are uniform in diameters for
caps. Cap diameters may differ between Constant Velocity drives. To improve
your practice and increase accuracy, you should measure all caps.
The cross-kit width is measured and length from cap to cap:You will also
need to measure the U-joint length from the cap's edge towards the cap's
end. cap. To ensure the most accurate measurement and increase the
likelihood of locating the correct PTO shaft, you must remove the cross-kits
from the yokes prior taking measurements.
Remember that certain series may not be uniform in their width. The cross
kit should be measured in on both sides is your most effective practice to
guarantee accuracy.
