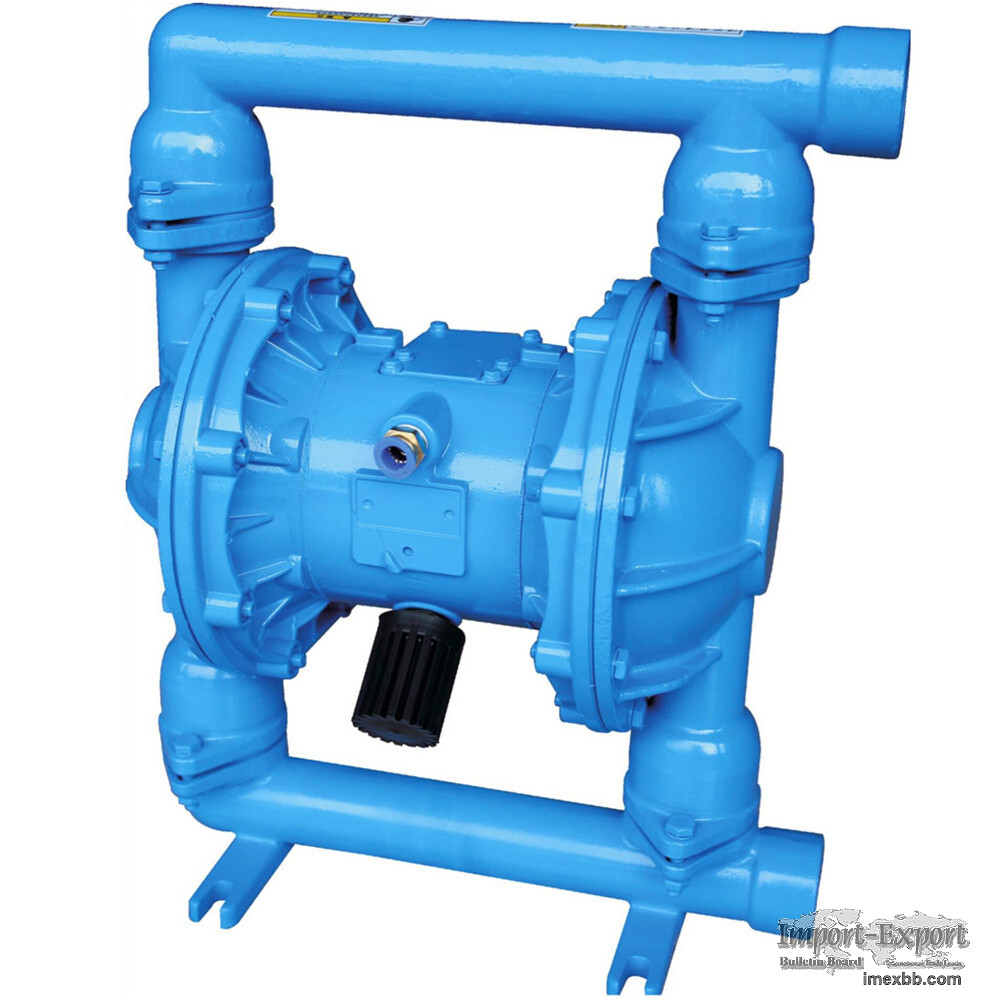

QBK Air operated double membrane pump

QBK Air operated double membrane pump QBK Air operated double diaphragm pump not
only can exhaust the flow liquid but also can convey some uneasy flowed medium with
the merits of self priming pump, diving pump, shield pump, slurry pump and impurity
pump etc. 1. It is unnecessary to pour the drawing water. The suction lift reaches
5m height. The delivery lift reaches 70m length and export pressure≥6kgf/cm2. 2.
Wide flow and good performance. The diameter allowed to pass the max grain reaches
10mm. The damage is very less to the pump while exhausting the slurry and impurity.
3. The delivery lift and flow can pass the pneumatic valve open to realize the
stepless adjustment.(the pneumatic pressure adjustment is between 1-7kgf/cm2) 4.
This pump has no rotary parts and no bearing seals. The diaphragm will completely
separate the exhausted medium and pump running parts and working medium. The
conveyed medium can not be leaked outside. Thus it will not cause the environmental
pollution to ensure human body safety while exhausting the toxin and flammable or
corrosive medium. 5. No electricity. It is safe and reliable while using in the
flammable and explore places. 6. It can be soaked in medium. 7. It is convenient to
use and reliable to work. Only open or close the gas valve body while starting or
stopping. Even if no medium operation or pausing suddenly for long time because of
accident matters, the pump will not be damaged caused by this. Once over-loading,
the pump will automatically stop and possesses the self protection function. When
the load recovers normally, it can also start automatically. 8. Simple structure
and less wearing parts. This pump is simple in structure, installation and
maintenance. The medium conveyed by the pump will not touch the matched pneumatic
valve and coupling lever etc. Not like other kinds pumps, the performance will drop
down gradually because of the damages of rotor, gear and vane etc. 9. It can
transmit the adhesive liquid(the viscosity is below 10000 centipoise) 10. This pump
need not the oil lubricant. Even if idling, it has no influence to the pump. Main
usage: 1. The pump can suck the peanut, pickles, tomato slurry, red sausage,
chocolate, hops and syrup etc. 2. The pump can suck the paint, pigment, glue and
adhesive etc. 3. The pump can suck various glazed slurries of tile, porcelain,
brick and chinaware etc. 4. The pump can suck various grinding materials, corrosive
agent and the oil dirt etc 5. The pump can suck various toxin and flammable or
volatility liquid etc. 6. The pump can suck various wedge water, cement slurry and
mortar etc 7. The pump can suck various strong acid, alkali and corrosive liquid
etc 8. The pump can be used as a front-step transmission device of the solid and
liquid separation equipment.

Minimum Order: 1 sets
