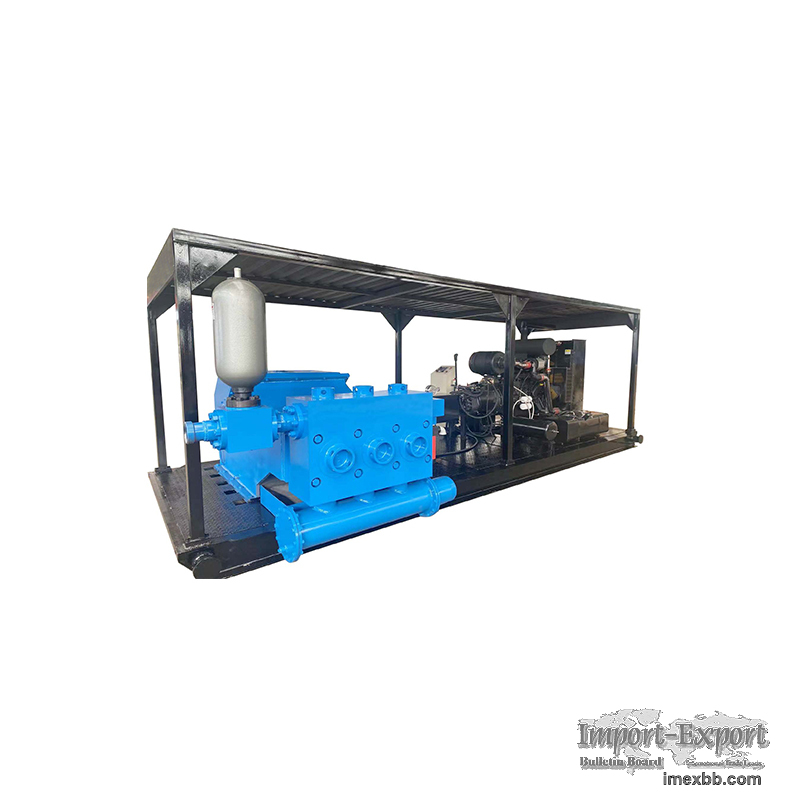

QZNB-2200 horizontal three-cylinder reciprocating single acting mud pump

QZNB-2200 horizontal three-cylinder reciprocating single acting mud pump
Specifications：
QZNB-2200 mud pump is a horizontal three- cylinder reciprocating single acting
mud pump, which is driven by diesel engine, manual shift gear box with wireless
remote control.
It is mainly used for matching with trenchless drilling rig of more than 200
tons, and can also be used for grouting, mine drainage and long- distance water
delivery and other purposes.
The flow rates and pressures can be controlled by 8 levels, with a wide range
of flow and pressure, and can be used for drilling and towing with different
pore sizes.
The pump according to the drilling pump design specification and API standard
design and manufacture,pump shell is made of high strength steel plate welding,
connecting rod cross rolling bearing, cylinder liner with bi-metal type, inner
sleeve using high Cr alloy, with hardness of HRC62.
In a word,the pump increases the service life of spare parts, reduce the loss
of spare parts.
Type Horizontal triplex reciprocating single acting piston pump
  Trip（mm） 177.8
  Cylinder diameter（mm） 170
  Flow（L/min） 800-2200
  Pressure（MPa） 5-20
  Input power（KW） 240
  Outline dimensions（mm） 6000x2300x2400
  Mass（kg） 10000
  Diesel engine model WP10
  Diesel engine powe（KW） 266
  Rated rotation speed（r/min） 2100
