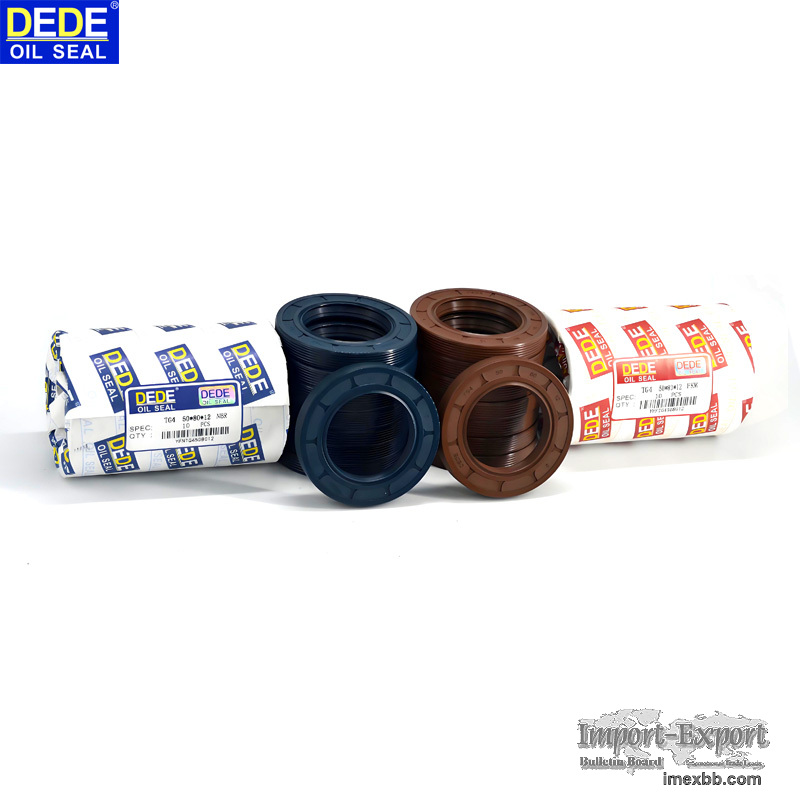

Radial Shaft Oil Seal Skeleton Oil Seal for High Speed Rotating Equipment

In industries such as machinery, automotive manufacturing, and mechanical
transmission, skeleton oil seals are integral components of sealing systems,
performing essential functions in preventing leaks and ensuring smooth
operation. The quality of these oil seals directly influences the stability
and lifespan of equipment. To guarantee the high quality and reliability of
skeleton oil seals, strict standards must be adhered to. This article
explores the national, industry, and international standards that help
ensure the performance and quality of skeleton oil seals in real-world
applications.

National Standards for Skeleton Oil Seals

Skeleton oil seal standards in China are issued by the Standardization
Administration of China (SAC). These standards provide detailed
specifications for design, production, and quality control, ensuring the
consistency and high performance of oil seals in various applications,
especially in machinery, automotive, and other high-demand industrial
equipment.

Key National Standards:

GB/T 13871.1-2022: Basic Standard for Oil Seals

This is the fundamental standard for the skeleton oil seal industry in
China. It covers key requirements related to dimensions, tolerances,
materials, and other critical specifications, ensuring that oil seals are
perfectly adapted to equipment. Special attention is given to shaft diameter
tolerances, radial tolerances, and other technical parameters, reducing the
risk of sealing failure due to dimensional errors.

GB/T 9877-2008: Rotary Shaft Lip Seal Design Standard

A widely adopted design standard in China, this standard specifies the
structural dimensions and assembly requirements for oil seals. It provides
manufacturers with clear technical guidance, ensuring that skeleton oil
seals maintain their sealing function under various working conditions,
effectively preventing leaks.

Industry Standards: Detailed Requirements for Specific Applications

In addition to national standards, industry-specific standards offer more
tailored technical specifications for oil seals used in specific sectors.
These standards are particularly important for high-demand industries such
as automotive manufacturing and heavy machinery, where the design, material
selection, and performance of oil seals are subject to more detailed
regulations.

Common Industry Standards Include:

JB/T 8193-2011: Mechanical Sealing Components Industry Standard

This standard focuses on sealing components used in mechanical equipment,
detailing material selection, performance testing, and environmental
requirements. It ensures that oil seals can maintain their sealing
effectiveness even under extreme conditions such as high temperatures and
high pressures.

SAE J188-2006: Automotive Industry Oil Seal Standard

This standard addresses the specific needs of the automotive industry,
focusing on oil seals’ oil resistance, high-temperature endurance, and wear
resistance. Oil seals meeting this standard can effectively extend the
lifespan of critical automotive components such as engines and transmissions
by preventing leakage and ensuring reliable performance.

International Standards: Ensuring Consistency and Universal Applicability

As globalization continues to advance, international standards have become
crucial for multinational companies and supply chain management. To ensure
uniformity and reliability of oil seal products across global markets, many
manufacturers must comply with international standards.

Key International Standards Include:

ISO 6194: International Standard for Oil Seals

Published by the International Organization for Standardization (ISO), ISO
6194 is widely adopted worldwide. It defines the design, materials,
dimensions, and performance requirements for oil seals, ensuring consistency
and compatibility across different regions.

DIN 3760: German Standard

This standard, issued by Germany, is designed for high-performance
mechanical seals, particularly for applications that require superior
sealing capabilities, such as aerospace and precision machinery.

JIS 2402: Japanese Standard

A widely recognized standard in Japan, JIS 2402 sets specific requirements
for the design and reliability of rotary shaft seals. It emphasizes the
performance of oil seals under long-term, high-load conditions.

Practical Significance of Standards: Ensuring Seal Performance and Equipment
Reliability

These standards not only provide the technical framework for the design and
production of oil seals but also guarantee their performance in real-world
applications. Specifically, the application of these standards ensures:

Sealing and Leakage Prevention: Standardized dimensions and structural
requirements help ensure that oil seals effectively prevent lubrication oil
leakage, contributing to the stable operation of equipment.

Enhanced Durability: Standards provide clear specifications for the
materials and performance of oil seals, ensuring they can maintain their
sealing function under harsh environmental conditions, thus reducing
maintenance costs.

Improved Production Consistency: Using standardized processes helps improve
production stability and ensures that oil seals from different batches
maintain consistent performance.

Skeleton oil seals are crucial components for ensuring the smooth operation
of industrial equipment. Their quality and performance directly affect the
efficiency and lifespan of the machinery. By implementing strict national,
industry, and international standards, manufacturers can ensure the high
quality and reliability of their oil seals, while users can select oil seals
that meet their specific needs based on these standards.

In high-demand industrial equipment and automotive applications, oil seals
that adhere to these standards not only ensure long-term stable operation
but also minimize downtime and failures caused by sealing issues. For B2B
platforms, understanding and applying these standards is critical for
enhancing product competitiveness and meeting customer needs.

Standardized skeleton oil seals not only guarantee product quality and
performance but also provide enterprise clients with traceable quality
assurance. This is a vital tool for enhancing supply chain management and
driving business growth.
