Rapid S.S Couplings

Product Description of ss coupling

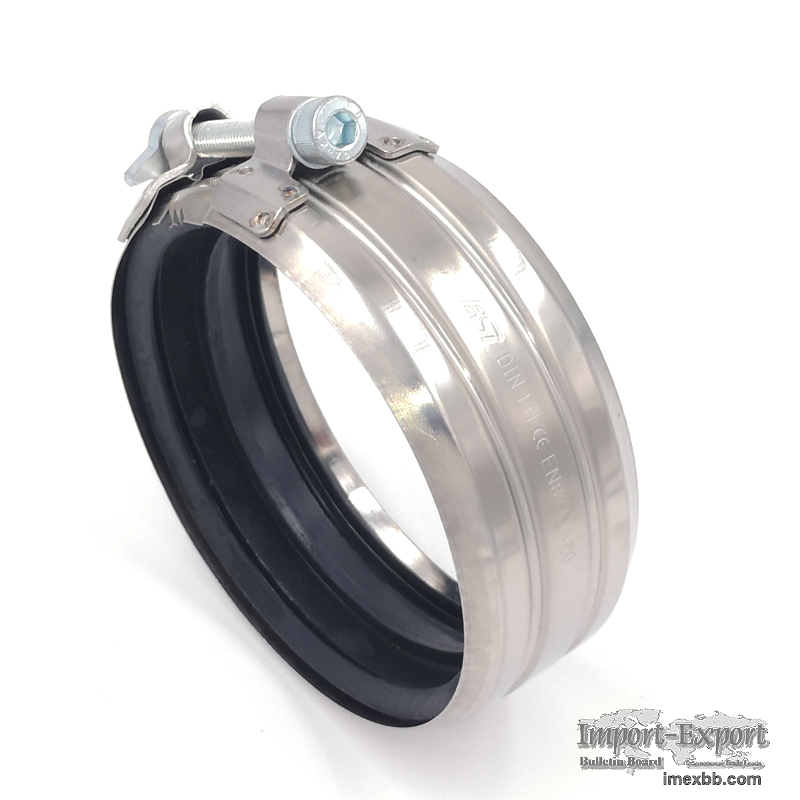

BEISAI Rapid S.S Couplings(Type-B)
Strip Material and Fixed parts: S.S 1.4301/1.4571/1.4510 as per
EN10088(AISI304/AISI316/AISI439)
Bolt: Round head screws with hexagon socket with zinc plated
Sealing rubber/Gasket:EPDM/NBR/SBR
DN ≈D(mm) ≈H(mm) ≈L(mm) Torque(NM) Bolt Bar
50 71 83 42 18.00 M8 5
70 91 103 45 18.00 M8 5
75/80 96 107 47 18.00 M8 5
100 123 135 47 18.00 M8 5
125 152 164 54 18.00 M8 5
150 177 189 54 18.00 M8 5
200 230 244 67 28.00 M10 5
250 290 315 95 30.00 M10 3
300 350 375 95 30.00 M10 3
