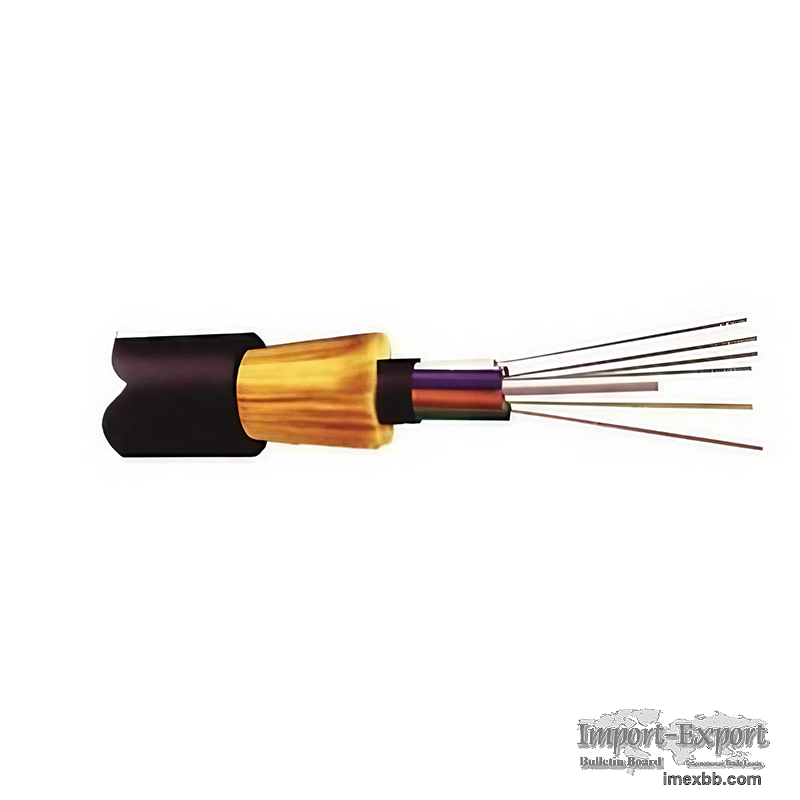

Self-Supporting Aerial Cable (ADSS)

Can be installed without power failure
Adopt AT sheath, excellent anti-tracking performance
Light weight and small cable diameter reduce the impact of ice and wind and the
load on towers and supports
Large span, the maximum span exceeds 1000m
Excellent tensile strength and temperature characteristics
Expected life span can reach 30 years
Product Application
The design of ADSS optical cable fully considers the actual situation of power
lines and is suitable for high-voltage transmission lines of different levels.
For 10kV and 35kV power lines, polyethylene (PE) sheath can be used; for 110kV
and 220kV power lines, the optical cable hanging point must be determined by
calculating the electric field strength distribution and anti-tracking (AT)
outer sheath must be used. At the same time, the amount of aramid and the
perfect twisting process are carefully designed to meet the application
requirements of different spans.
Product Standard
ADSS optical cable follows the IEEE P 1222 technical standard and meets the IEC
60794-1 standard.
