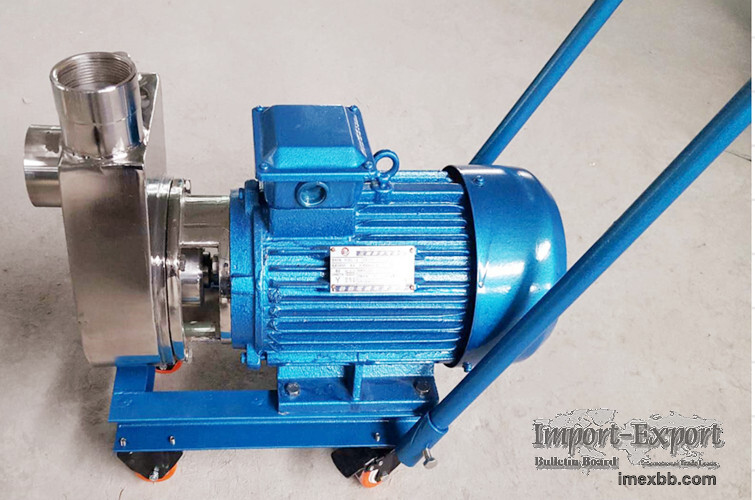

SFBX Stainless steel horizontal centrifugal pump self priming

horizontal stainless steel pumps are primarily divided into two categories based on
connection methods and functional characteristics
1. Connection method:
Direct-drive /coupled type: The motor is directly connected to the pump body,
suitable for conveying liquids with temperatures ≤90°C
With shaft coupling type: Connected via a coupling, suitable for handling high-
temperature liquids ≤105°C
2. Functional Features:
SFB Standard Delivery Type: No self-priming function, requires a foot valve
Self-priming type ( SFBX series): Operates the pump without a foot valve, saving
effort
II. Core Features
1. Corrosion-resistant:
Made of 304 and 316L stainless steel, resistant to weak acids and alkalis, suitable
for both food factories and chemical plants
2. Compact footprint:
Horizontal design, with the motor and pump body lying flat to save space; the SFBX
series features self-priming capability, simplifying the piping system
3. Seal properly:
West Germany's cantilever mechanical seal, nearly leak-free
4. Easy to repair:
The impeller and seals can be disassembled separately; the coupling design allows
for maintenance without the need to dismantle the pipelines
5. Power-saving:
The hydraulic model has been optimized for high efficiency, making it more cost-
effective for long-term use
3. Application Scenarios
Suitable for industries with requirements for hygiene and corrosion resistance:
1. Food and Beverage:
Transporting liquids such as juice and milk, compliant with food standards
2. Pharmaceuticals:
Transporting drug solutions and solvents, supporting cleaning and disinfection
3. Wastewater Treatment:
Handling electroplating and dyeing liquids, but the liquids must not contain fine
soft particles
4. Chemical Industry:
Transporting dilute sulfuric acid, hydrochloric acid, and other liquids, with 316L
material offering superior corrosion resistance
5. Self-absorption demand:
The SFBX series features a suction height of 5-6.5 meters and is suitable for
various scenarios such as environmental protection and equipment cooling
4. Key Technical Parameters
Medium:
Clear water, weak acid and weak alkali solutions, etc., must not contain fine soft
particles in the liquid
2. Temperature:
Direct drive temperature ≤90°C, coupling drive temperature ≤105°C
3. Material:
304 material is suitable for general scenarios, while 316L is recommended for
highly corrosive environments
4. Performance:
Flow rate range: 3.2-550 m³/h (varies by model), head suitable for medium and low-
pressure applications
5. Installation:
The motor and pump shaft deviation shall be ≤0.1mm, the suction pipe height ≤5
meters, and a filter screen and overload protection device must be installed

Minimum Order: 1 sets
