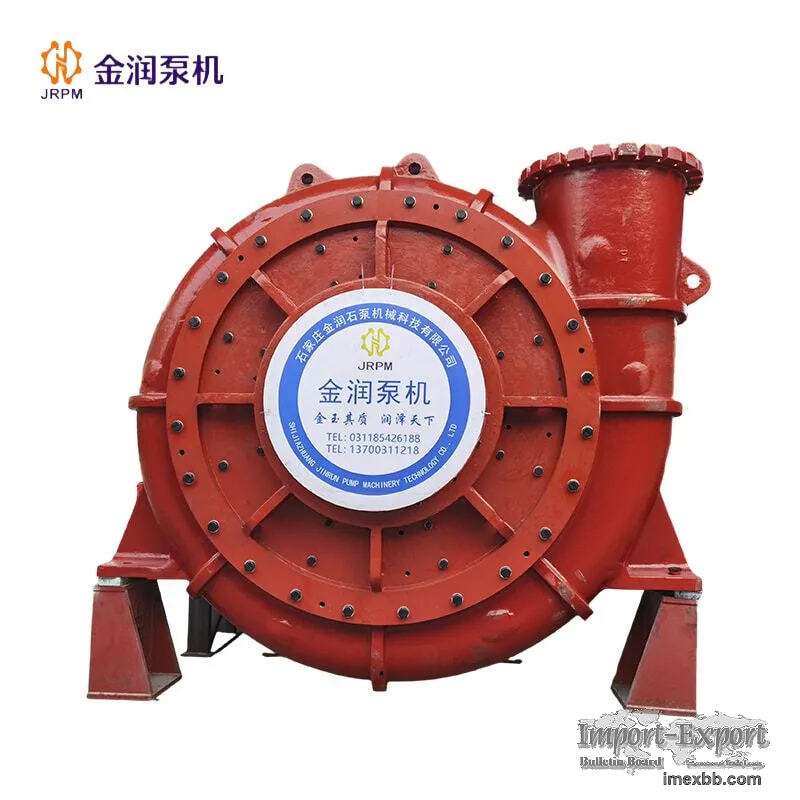

Single -shell high-efficiency low head large flow pump

Single -shell high-efficiency low head large flow pump

Shijiazhuang Jinrun Pump Machinery Technology Co., Ltd. specializes in Single
Shell Low Head Dredge Pumps, engineered to deliver efficient, reliable, and
long-lasting performance for dredging, reclamation, and material transport
projects where low head operation is required. Designed with a compact single-
shell structure and precision hydraulic engineering, these pumps offer smooth
flow, energy efficiency, and exceptional wear resistance for continuous
operation in challenging environments.
The low head design ensures high flow at moderate lift, making it ideal for
large-volume dredging, sediment removal, and shallow-water applications.
Modular construction and humanized maintenance access simplify assembly,
disassembly, and on-site servicing.

Small-caliber dredge Pumps (Diameter ＜250mm)

Available in single-pump casing and double-pump casing designs, these compact
mud pumps stand out for their superior pressure resistance that enables
efficient long-distance solid-liquid material transport. Boasting a simplified
structural design, they feature easy disassembly, assembly and part
replacement, significantly reducing maintenance time and operational costs for
our customers.

Medium-caliber Dredge Pumps (Diameter 200–500mm)

Designed with a single-pump casing, single-stage, single-suction and
cantilevered horizontal structure, this series offers two flexible
configurations: integrated bracket type and separate pump-and-casing type. All
models are fitted with submersible pumps for versatile underwater operation;
for high-lift working scenarios requiring 2-level or higher series operation,
the in-hull pump unit can be customized into a dual-pump system, effectively
boosting conveying head and adaptability to complex working conditions.
Large-caliber Dredge Pumps (Bore Diameter 600–1200mm)

This heavy-duty series provides two structural options for in-cabin use: dual-
pump casing type and single-pump casing type, both adopting a single-stage,
single-suction, cantilevered horizontal design with a stable integrated
support bracket. Equipped with forced dilute oil lubrication system, the pumps
ensure smooth and wear-resistant operation of key components, extending service
life under heavy load. For submersible applications, the single-pump casing
design is exclusively adopted to reduce overall weight, making the pump much
easier for lifting, lowering and on-site movement. A humanized front-
disassembly mechanism is paired with professional dedicated tools, realizing
quick assembly and disassembly—greatly simplifying daily maintenance, on-site
repair and part replacement work.
