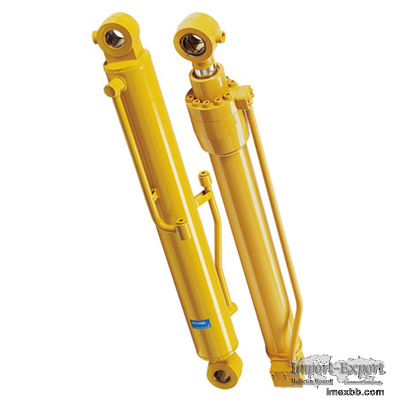

Small Excavator Series Cylinders

What is mini excavator hydraulic cylinder?
These cylinders are mainly for small excavators, including stick cylinders,
boom cylinders, bucket cylinders and dozer cylinders. Using pressure 27.5MPa,
set up one-end or end buffers according to usage requirements.

Advantages of Small Excavator Series Cylinders:
These cylinders are mainly used for small excavators, including stick
cylinders, boom cylinders, bucket cylinders and dozer cylinders. Use a pressure
of 27.5MPa, and set one end buffer or both ends according to the requirements
of use. The cylinder is made of high-quality alloy steel after being scraped
and slid by inner hole. The piston rod is based on quenching and tempering and
medium frequency quenching. The outer circle is coated with hard chrome to
improve rust prevention, wear resistance and damage resistance; NOK and other
internationally renowned brands. The product has the characteristics of compact
structure and high reliability.

Product Description

Technical Specification of Small Excavator Series Cylinders

Specification of Small Excavator Series Cylinders
Bore D  mm Rod  d  mm Stroke   mm A Piston length B Piston
rod head Cylinder earrings
Buffered Unbuffered P1 H
P2(P3) M
70 45/50 730 130 85 75 40 60 40 55
75 45/50 900 130 85 75 40 60 45 65
80 45/50 900 130 85 80 40 60 50 65
85 50/55 900 130 85 85 40/45 60 50 65
90 55/60 1150 135 85 90 45/50 60/75 50 65
95 60/65 1150 135 95 95 50/55 75 60 85
100 60/65 1150 135 95 95 50/55 75 60 85
105 65/70 1150 135 95 100 55/60 75/100 60 85
110 65/70 1350 135 95 105 55/60 75/100 65 90
115 65/70 1350 135 95 105 55/60 75/100 65 90
120 70/75/80 1350 135 95 110 60/65/80 100/105
70 95

JC forging is a professional forged components manufacturer. We provide small
double acting hydraulic cylinder, small telescopic hydraulic cylinder, small
electric hydraulic cylinder, small hydraulic cylinders for sale and etc. Want
to know more? Please contact us.

Minimum Order: 1 sets
