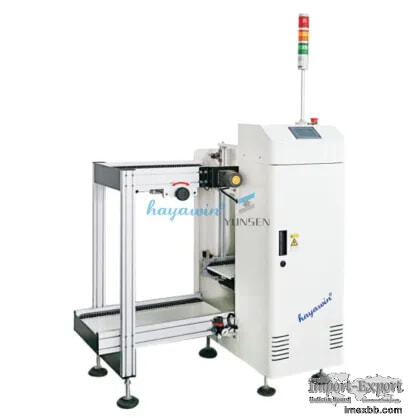

SMT PCB Gate Conveyor

SMT PCB Gate Conveyor Description
SMT PCB Gate Conveyors are conveyor systems that are used to transport PCBs
(printed circuit boards) through different stages of the manufacturing process.
They are commonly used in the production of electronic devices and are designed
to move PCBs efficiently and accurately from one station to the next. SMT PCB
gate conveyors can be used to automate the process of moving PCBs through
different stages of production, such as assembly, inspection, and testing, and
can also be used to transport PCBs between different stations or processes in a
manufacturing facility. These conveyors can be equipped with vision systems or
other inspection systems to help ensure that PCBs are being moved accurately
and efficiently, and can help to reduce the risk of damage to PCBs during
transport.

Hayawin's Gate Conveyor, Custom SMT PCB Gate Conveyor is fully equipped to
provide excellent stability and performance to handle printed circuit boards in
SMT manufacturing. You can contact us for more customization details.

Hayawin Gate Conveyor Features
● Panasonic PLC controller.
● Fully covered design, 4 sensors detection channel pass, high security
● Normal opened for conveying, closed when require a passageway which width
is600mm
● Cylinder driven for smooth extension and retraction.
● Smooth and parallel rail width adjustment. (T-type screw)
● SMEMA compatible.

Custom SMT PCB Gate Conveyor Specifications
Dimension: L1200 (opened) mm*W890mm*H1200mm
Max PCB size: L500*W460mm
Transport height: 920±20mm
Transfer direction: Left to right/right to left
Interface: SMEMA
Power supply: 100-230V AC
Power voltage: 50w
Air supply: 4-6bar
Air consumption: Max 10L/min
Telescopic stroke: 600mm
Cycle time:±20s

Applications of SMT PCB Gate Conveyor
Automating the PCB manufacturing process: SMT PCB gate conveyors can be used to
automate the process of moving PCBs through different stages of production,
such as assembly, inspection, and testing. This can help to increase efficiency
and reduce the risk of errors.
Transporting PCBs between different stages of production: SMT PCB gate
conveyors can be used to transport PCBs between different stations or processes
in a manufacturing facility, such as from an SMT pick and place machine to a
reflow oven.
Quality control: SMT PCB gate conveyors can be equipped with vision systems or
other inspection systems to help ensure that PCBs are being moved accurately
and efficiently, which can be important in maintaining quality control
standards.
Reducing the risk of damage: SMT PCB gate conveyors can help to reduce the risk
of damage to PCBs during transport, which can save time and reduce the costs
associated with rework and repair.
