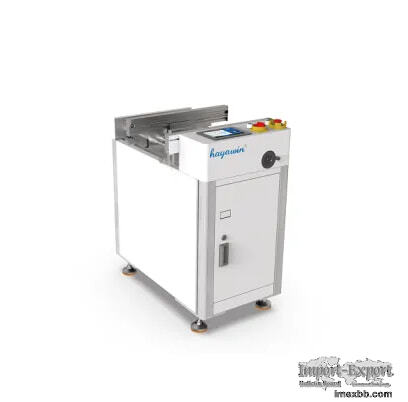

YS-CV460 SMT PCB Conveyor

Hayawin SMT PCB Conveyor Wholesale solutions deliver high-performance
automated PCB transportation systems for modern electronics manufacturing. From
the very first cycle, our Board Handling YS Model systems ensure precise,
efficient, and reliable movement of printed circuit boards, setting the
standard for streamlined SMT assembly lines.

The SMT PCB Conveyor Wholesale is a specialized transportation system
designed to automate the movement of PCBs between various production stages
such as pick-and-place, reflow ovens, and inspection stations. Constructed with
industrial-grade materials like aviation aluminum profiles and high-strength
iron plates, our conveyor system offers robust durability and stability. Key
design elements include safety door locks, a PLC programmable controller, and
an ESD belt transmission that allows for flexible flow directions. With
customizable options for machine length, stop boards, lighting racks, and more,
our YS-CV460 SMT PCB Conveyor systems are fully adaptable to different
production needs and equipment configurations.

Technical Specification

Conveyor speed 0.5～9m/min(adjustable)
Power supply 220V  50HZ
Transport height 950±30mm
Flow direction Left to Right/Right to Left
                      ,
Model Specification

Model YS-CV460
PCB width 50～460mm
Dimensions (L*W*H) (500～1500)×880×960mm

Key Features of Hayawin YS-CV460 SMT PCB Conveyor


Precise Width Adjustment:
Our SMT PCB Conveyor Wholesale systems feature adjustable rail widths,
ensuring compatibility with various PCB sizes and enhancing overall production
precision.

Smooth and Reliable Operation:
An anti-jamming design and dual belt drive system provide a consistent and
stable flow, minimizing misalignment and ensuring continuous, high-volume
production.

Variable Speed Control:
The system's variable speed settings allow seamless synchronization with
upstream and downstream equipment, optimizing the overall workflow.

Modular and Expandable Design:
The modular design of our SMT PCB Conveyor Wholesale systems enables easy
integration with multiple SMT machines and flexibility in line configuration,
allowing for future expansion.

Robust Construction and Safety:
Constructed with a 30T thick body panel and a reinforced A3 frame, the conveyor
system is designed for high stability, low vibration, and enhanced safety
features such as an automatic shutdown protection system.

Why Choose Hayawin as Your SMT PCB Conveyor Wholesaler?

Enhanced Production Efficiency:
Our SMT PCB Conveyor Wholesale system automates the transportation of PCBs,
significantly reducing manual handling and speeding up the assembly process,
thereby increasing throughput.

Improved Quality and Consistency:
With precise positioning and smooth operation, the system ensures accurate PCB
placement and alignment, which is crucial for high-quality soldering and
component assembly.

Cost Savings:
Automation reduces labor costs and minimizes errors, leading to lower
production costs over time. The system’s durability also ensures a long
operational life with minimal maintenance.

Versatile Integration:
Designed to work with various PCB equipment, our SMT PCB Conveyor
Wholesale systems are easily integrated into existing production lines and can
be customized for specific workflow requirements.

Scalability:
Whether for small-scale production or large-scale manufacturing, the flexible
design of our conveyor systems makes them scalable to meet the demands of high-
mix, high-volume electronics assembly.

Applications

SMT Assembly Lines:
Our SMT PCB Conveyor Wholesale systems are essential for linking equipment
such as pick-and-place machines, reflow ovens, and inspection stations,
ensuring smooth and automated PCB movement.

High-Volume Manufacturing:
Ideal for large-scale production environments where rapid, consistent, and
precise PCB handling is required, the system enhances production capacity and
efficiency.

Quality Control Stations:
Integrated into production lines, these conveyors facilitate thorough
inspection and quality assurance by ensuring that PCBs are correctly aligned
and positioned for testing.

Customized Production Lines:
With customizable options, our SMT PCB Conveyor Wholesale systems cater to
diverse production setups, adapting to various board sizes, layouts, and
operational requirements.

Hayawin SMT PCB Conveyor systems provide an advanced, reliable, and efficient
solution for automated PCB handling in modern manufacturing environments.
Engineered with precision and robust construction, these systems enhance
production efficiency, improve product quality, and offer scalable integration
into any assembly line. Choose Hayawin solutions to streamline your
manufacturing process and achieve unmatched reliability from the very first
cycle to the final output, ensuring our SMT PCB Conveyor Wholesale remains
the trusted choice for your production needs.
