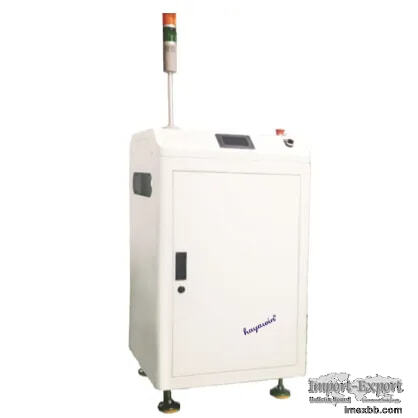

SMT PCB Turning Conveyor

SMT PCB Turning Conveyor Description
The SMT (Surface Mount Technology) PCB (Printed Circuit Board) Turning Conveyor
is a specialized type of conveyor system used in the production of electronic
components. It is designed to automatically rotate printed circuit boards as
they move through the various stages of the manufacturing process, allowing for
more efficient and precise assembly of the components. Hayawin Turning
Conveyors are commonly used in conjunction with other production equipment,
such as pick and place machines, reflow ovens, and inspection stations. They
are an essential piece of equipment in the modern electronics industry and play
a critical role in the production of high-quality, reliable electronic
products.

Hayawin Turning Conveyor Features
● Panasonic PLC controller
● PCB direction flows can be customized.
● 7mm flat belt, PCB conveying speed is 0-9m/min.
● The turning section is designed in a visible safety shield ensures highest
level of safety.
● Turning and parallel moving uses planetary reducer for accuracy positioning
● Conveyor width manual adjustment(50~390mm)
● SMEMA compatible

Hayawin Turning Conveyor Specifications
Max PCB size: L460*W390mm
Dimension: L800*W800*H1200mm
Length of rail: 500mm
Rotation degree: 90°
Transfer direction: clockwise/counter-clockwise(customized)
Paralle , l move stroke: 100mm
Cycle time: 15 seconds
Transport height:920 ±20mm
Power supply: 220V AC/50HZ/2A
Power voltage: 100w
Air supply: 4~6Mpa

Applications of SMT PCB Turning Conveyor
Hayawin Turning Conveyors are an essential piece of equipment in the modern
electronics industry, helping to streamline the production process and ensure
the production of high-quality, reliable electronic products. Turning Conveyors
are used in a variety of applications in the electronics industry, including:
Assembly of electronic components: Hayawin Turning Conveyors are used to
rotate printed circuit boards as they move through the various stages of the
assembly process. This allows for more efficient and precise placement of
components, such as surface mount components and through-hole components.
Testing and inspection: Hayawin Turning Conveyors can be equipped with test
probes or other inspection equipment to automatically test and inspect the
functionality and quality of the assembled circuit boards.
Repair and rework: In the event that a circuit board fails testing or
inspection, SMT PCB Turning Conveyors can be used to rotate the board and allow
for easy access to the components for repair or rework.
Packaging and shipping: Once the circuit board has been fully assembled and
tested, it can be rotated and placed onto a packaging or shipping conveyor for
distribution.

Dongguan Hayawin Electronic Technology CO.. LTD was established in 2003. As a
professional company devoted to industrial programming design, research&
development, manufacture& marketing complete set of automation machinery.
Hayawin's products mainly involve SMT automatic labeling machines, Loaders &
Unloaders, Link conveyors, Turning conveyors, Automatic Shuttle Conveyors,
Efficient buffer stockers and a variety of related electronic equipment. At the
same time, we also undertake factory automation engineering.
