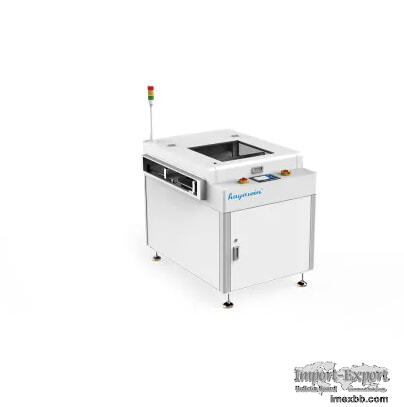

YS-CD460 SMT PCB Turning Conveyor-Clamp

SMT PCB Turning Conveyor Clamp – Advanced Automated PCB Handling and Rotation
System

SMT PCB Turning Conveyor Clamp provided by Hayawin is an innovative
automated system designed for high-precision PCB handling in modern electronics
manufacturing. Engineered to rotate circuit boards accurately at 90°, 180°,
or 270°, this device optimizes production workflows by seamlessly transferring
PCBs between process stages. From the very first cycle, our SMT PCB Turning
Conveyor Clamp ensures reliable and efficient board rotation, making it a
critical component for high-volume SMT lines.

The SMT PCB Turning Conveyor Clamp is purpose-built for integration into
circuit board production lines. Utilizing a robust machine frame made from
high-strength iron plate and aviation aluminum profiles, this device guarantees
stability and long-term durability. Its design features a fully enclosed
structure with a transparent observation window, ensuring that operators can
monitor the process at all times. The system is equipped with a PLC
programmable controller and touch screen for precise control, while the
standard SMEMA interface enables seamless connection with other SMT equipment.

Technical Specification

Cycle time ≈15S
Power supply 220V 50HZ
Air supply & usage 0.4-0.6MPa；≤10L/min
Rotate degree ±90°
Transport height 950±30mm
Flow direction Left to Right/Right to Left

Model Specification

Model YS-CD460
Pass-through Min PCB Size(L*W) 80×50mm
Pass-through Max PCB Size(L*W) 530×460mm(or customized)
Rotate Min PCB Size(L*W) 150×150mm
Rotate Max PCB Size(L*W) 530×460mm(or customized)
Dimensions (L*W*H) 1000×1300×1100mm

Key Features of Hayawin YS-CD460 SMT PCB Turning Conveyor-Clamp

Advanced PLC Control System:
The SMT PCB Turning Conveyor Clamp uses an integrated PLC controller to
ensure stable operation, precise movement, and seamless synchronization with
other production equipment.

Rotational Stability Mechanism:
Featuring motor-driven extension/retraction functions and adjustable parallel
width settings, the clamp maintains smooth and consistent rotation. A built-in
torque limiter further enhances safety during PCB handling.

Dedicated Aluminum Guide Rails:
These guide rails minimize vibration and friction, ensuring that PCBs are
transported without damage or misalignment, a critical factor for maintaining
production quality.

Robust and Durable Construction:
The frame is constructed using folded and welded sheet metal with powder-coated
surfaces, offering superior corrosion resistance and mechanical strength even
in demanding industrial environments.

Automatic Diagnostics and Safety Features:
Equipped with photoelectric sensors and fault code displays, the SMT PCB
Turning Conveyor Clamp simplifies troubleshooting and reduces downtime. A
safety door lock function and equipment shutdown protection further ensure
operator safety.

Advantages

Enhanced Efficiency:
The SMT PCB Turning Conveyor Clamp automates board rotation and transfer,
reducing manual intervention and speeding up production cycles, which is
essential for high-volume manufacturing.

Increased Production Precision:
With adjustable settings and high-precision control, this system ensures
accurate PCB positioning, minimizing errors during soldering and component
placement.

Versatile Integration:
The device is designed to work seamlessly with various SMT machines such as
pick-and-place systems, reflow ovens, and inspection stations, enhancing
overall line efficiency.

Low Maintenance and High Reliability:
Thanks to its robust construction and self-diagnostic features, the SMT PCB
Turning Conveyor Clamp offers reduced maintenance costs and long-term
operational stability, even in high-demand environments.

Operational Flexibility:
The clamp's multi-angle rotation and adjustable width settings allow it to
cater to diverse production layouts, making it adaptable for space-constrained
production lines and various board sizes.

Applications

High-Volume PCB Assembly:
Ideal for factories requiring rapid, automated board orientation changes,
especially in double-sided SMT processes, the SMT PCB Turning Conveyor
Clamp ensures continuous and precise operations.

Space-Constrained Production Lines:
In facilities with limited floor space, this clamp efficiently redirects PCBs
to alternate channels, overcoming layout constraints while maintaining high
throughput.

Automated Integration:
The SMT PCB Turning Conveyor Clamp seamlessly connects with other equipment
via SMEMA interfaces, facilitating smooth integration in mixed-vendor
production environments.

Quality Control and Inspection:
By accurately positioning PCBs for subsequent inspection and testing, this
system enhances overall product quality and reduces defects in final
assemblies.

Hayawin SMT PCB Turning Conveyor Clamp delivers an advanced, high-precision
solution for automating PCB rotation and transfer in SMT production lines. Its
robust construction, advanced control features, and versatile integration make
it an essential asset for modern electronics manufacturing. Invest in our SMT
PCB Turning Conveyor Clamp to enhance production efficiency, improve quality
control, and ensure safe, reliable operation.
