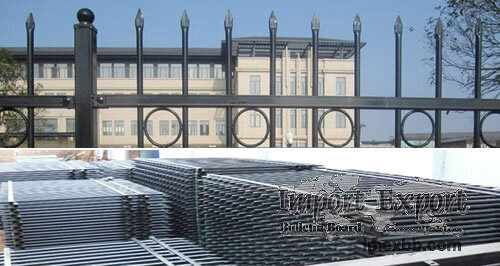

Spear Top Security Steel Fence

Pressed spear top security Steel fencing with Punched Tube Rails
Berming is a China manufacturer of pressed spear top security fencing. The
fence panels are composed with punched tubular rails with spear tops.
Horizontal tube, vertical tube and column are the three major parts. The spear
top fence system can be fitting with swing gates.

Our popular spear top fencing for export in 2015:
40 x 40mm rails: Punched rails
25 x 25mm uprights & 125mm centre
Fully welded and powder coated
Fencing Panel Size:
2400 x 1800mm high
2400 x 2100mm high

Pressed Tubular Spear Top Fences made with Australian standard:

Australian Standard Press Formed Tubular Security FenceSpecification: 2.1m(H) x
2.4m(W) / 1.8m(H) x 2.4m(W)/
The horizontals rail: galvanized 40 x 40 x 1.6mm SHS
The vertical spear post: galvanized 25 x 25 x 1.2mm SHS
The Posts: galvanized 65 x 65 x 5mm SHS; Post 60x60x2.0mm or 80x80x2.0mm.
The spacing of vertical post: 125mm or customization
Gap in between the pickets is 110mm
The surface finish: powder coating after fabricated by hot dip galvanized/pre
galvanized steel tube
Material: hot dipped galvanized round and square tube
Powder coating: Black color powder coated normally
40x40x1.6mm top and bottom rail, 25x25x1.2mm Verticals
There are 18 vertical pickets 25x25mm with spear.

Features of Steel Tube Railing Fence with Spear Top:
Two layers anticorrosive processing: galvanizing and powder coating;
Good anti-corrosion performance;
Long service life;
Can be reused after surface treatment after long uses.
