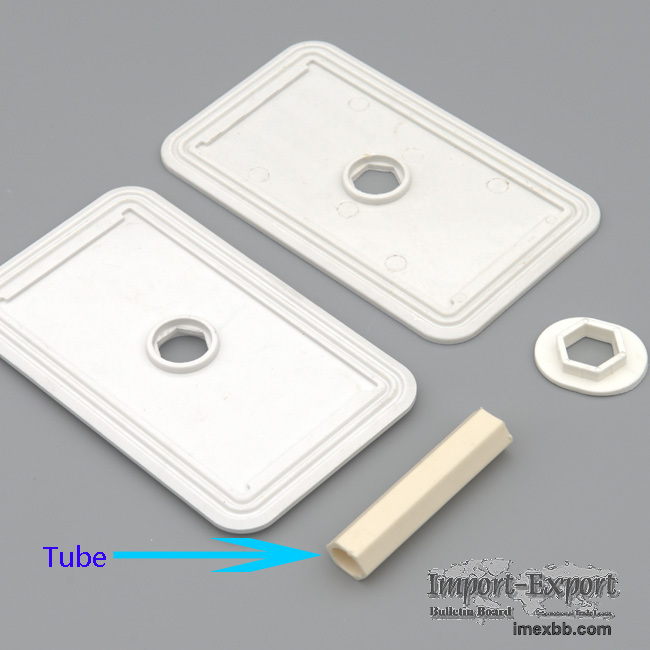

Splice plate insulating block, insulation barrier for busduct joint

Installation Guidence of Busduct Joint
Step1:dentify the correct joint stack (either 4W or 5W) and its phase orientation
before Busduct joint pack installation
Step2: Align and connect both busduct terminal with joint stack connector.
Step3:Joint stack stopper acts a guideline to ensure a full contact surface of the
overlapping conductors.
Step4: Tighten the double headed bolt by using socket wrench untile the outer head
shear off.
Step5:Place joint pack covers on both sides of the busduct joint section and tighten
all the bolts and nuts with socket wrench.

Minimum Order: 100 pieces
