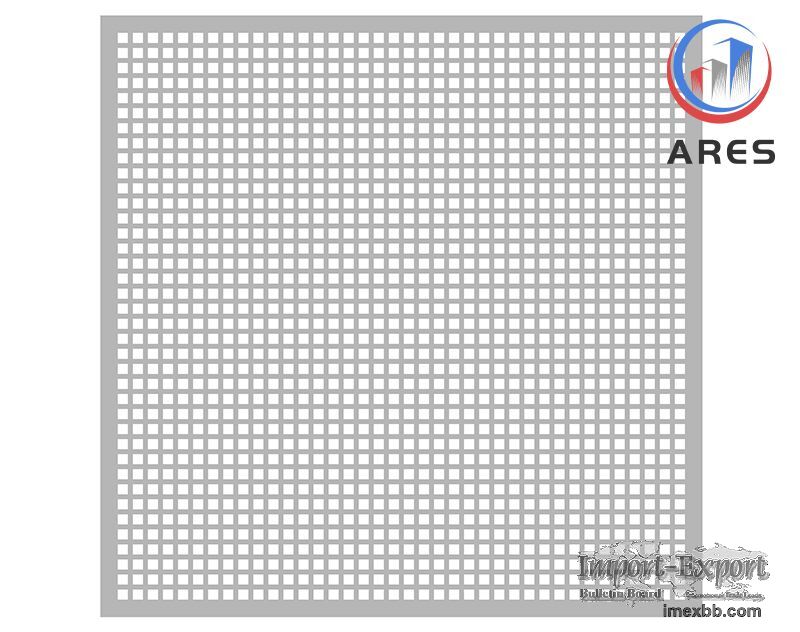

Square Holes Aluminum Perforated Sheet Metal HJP-1015S

Square Perforated Sheet Metal

Model No.: HJP-1015S
Material: Aluminum
Thickness: 2.0 mm
Hole shape: Square (Straight 90 degree)
Hole diameter: 10mm
Hole pitch: 15mm
Weight: 4.81 kg/m2
Open area: 40.28%

Huijin Perforated Metal Sheet
(1)Production of perforated sheet
Perforated metal panels are produced by punching holes of different shapes and
sizes into metal plate to create various patterns. A range of tools can be
utilized alongside punching machines to create regular and irregular patterns.

(2)Various Material Choice of Perforated Sheet
· Aluminum, aluminum alloy
· Carbon steel
· Galvanized plate
· Stainless steel 201, 304, 316, 316L
· Copper
For decoration use, most customers choose aluminum alloy as their project
material, because it is light weight, easy to install on frame.

For the 3 series and 5 series grade, some of the holes are limited by their
ductility and stretchability, actually it is more suitable for producing
perforated sheet.

(3) Optional Surface Treatment of Perforated Metal Panel
Available in a large variety of finishes including powder coated and anodised,
perforated metal mesh provides designers and architects with the freedom to
create a diverse range of patterns and designs.
· Mill finish
· Powder coating
· PVDF painting
· Spraying painting
· Anodizing (only for aluminum material)

(4) Extensive Color Options of Perforated Sheet Metal
· RAL color card
· Pantone card
· Customized according to your sample or photos

(5) Application
The perforated sheet can be used for different applications in the
architectural sectors:

Perforated Sheet for Building facade
Perforated Mesh for Roof Ceiling
Perforated metal mesh for Decorative fence
Perforated mesh for Interior Screen

As well as the aesthetic properties, perforated panel systems are an effective
method of satisfying ventilation and solar shading requirements.

Our specialists can provide expert advice and guidance to assist you in
selecting the appropriate format of perforated metal panel. We can assist with
advice regarding acoustics, light transmission and ventilation requirements and
offer suggestions to suit individual budgets, designs and installation
requirements.
Whatever is the process, type of perforated metal sheet or field of
application, we guarantee the highest quality.

Minimum Order: 10 square metres
