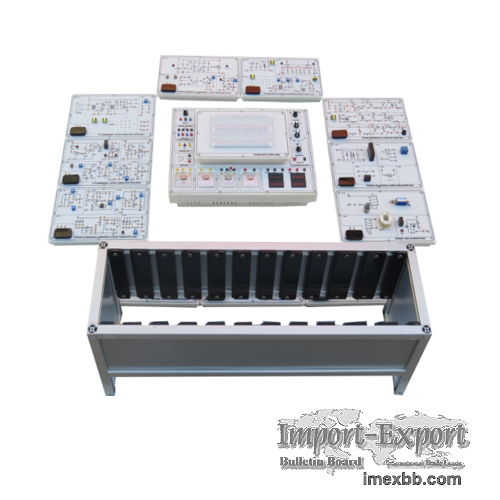

SS1101C Linear Circuit Lab Teaching Equipment

The electronic training device, including the basic electrical experimenter,
includes a host and a template unit. The host unit includes various measuring
instruments, waveform generators, and power modules; the template unit has eleven
templates each containing an eight-digit DIP switch, so the experiment on each
template can use this switch to arrange appropriate faults. Let students practice
troubleshooting. See Appendix 1 for the relative position of the fault repair
switch. The fault switch of each template is factory-based, based on the
principle that the circuit works normally. Place the switch in the normal
position after troubleshooting.
