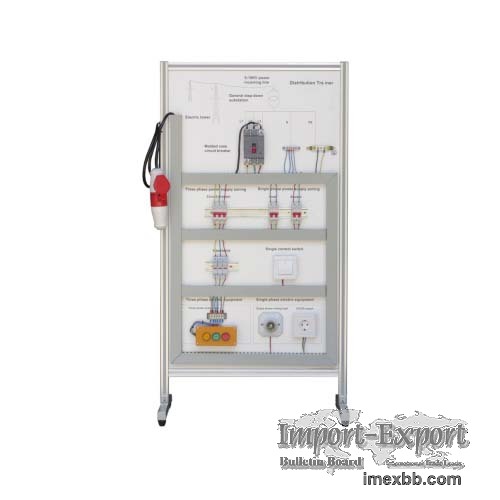

ZE3424 Distribution Trainer Electrical Training Equipment

I.Product Overview
1.1 Overview
The experimental setup simulates a power supply network. The "distributed
control trainer" mode is widely used in the learning of typical distributed
trainers. Through experiments, the principle of control mode and the
corresponding knowledge and skills can be mastered. It is suitable for higher
vocational colleges, secondary vocational colleges and related vocational
colleges. Professional Teaching and Skills Training Examination
1.2 Features
(1) The training platform adopts an aluminum profile column frame structure,
and the coordination of each unit is flexible, easy to use, and not easy to
damage.
(2) The experimental circuit and devices are fully configured and can be used
in combination to complete the training content of various subjects.
II.Performance Parameter
1. Input power: AC380V±10%
2. Input voltage: ≤1kw
3. Working environment:
1) Temperature: -10℃~+40℃;
2) Relative humidity: ≤90% (+20°C);
3) Altitude: ≤4000m;
4) The air is clean, no corrosive and explosive gas, no conductive dust and
dust that can damage insulation
III. Completable Training Content
Experiment 1 Equipment Operation Experiment
Experiment 2 Long-distance Power Transmission Experiment
Experiment 3 Circuit Recognition Experiment
Experiment 4 Recognition of Professional Terms
Experiment 5 Wire Wear during Pay-off
Experiment 6 Path Selection
Experiment 7 UHV Transformer Introduction
Experiment 8 Transformer Classification and Fault Introduction
Experiment 9 Cable Introduction
Experiment 10 Cable Types and Application Introduction

Minimum Order: 1 sets
