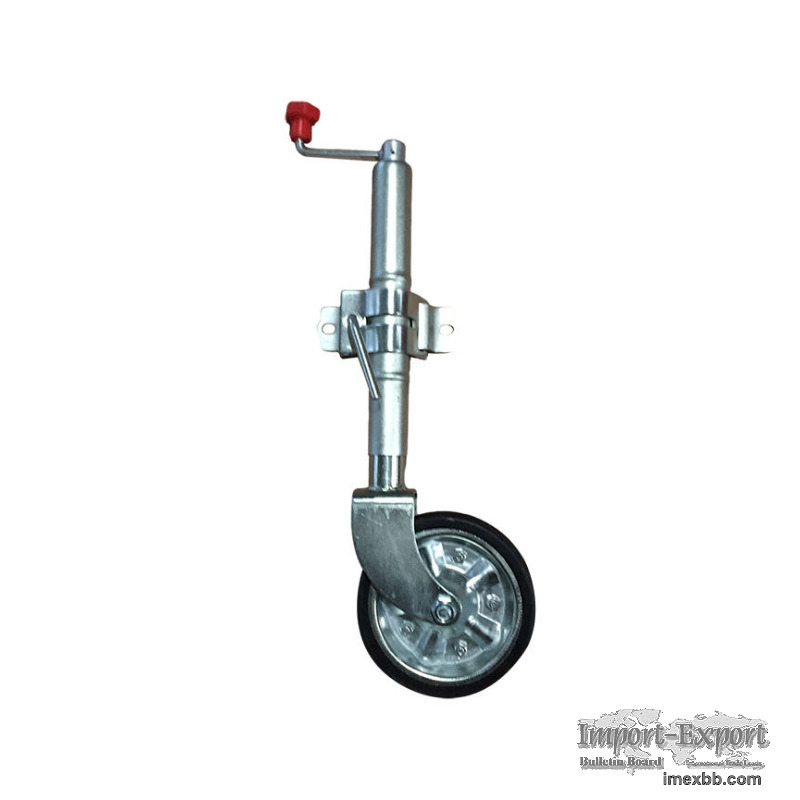

Standard 8-Inch Ribbed Jockey Wheel

This is the new standard for trailer reliability. Our 8-Inch Top Wind Jockey
Wheel combines a time-tested, user-friendly design with the superior strength
of a ribbed outer tube.
Built to be the workhorse of your trailer fleet, this model offers the proven
performance of a top-wind mechanism, enhanced by an anti-spin ribbed casing
that locks securely into the supplied clamp. It is the perfect choice for
manufacturers looking to elevate the base quality of their trailers with a
component that offers visibly better engineering and safety.
 Specifications
Specification Standard Top Wind 8" Ribbed Model
Static Load Capacity 400 kg
Mounting Style Swivel Clamp-On (Included)
Outer Tube Diameter 48 mm (Ribbed Profile)
Wheel Diameter 200 mm (8 Inches)
Wheel Type Solid Rubber Wheel with Steel Rim
Finish Fully Zinc Plated
Retracted Height 567 mm
Extended Height 832 mm
Travel 265 mm
