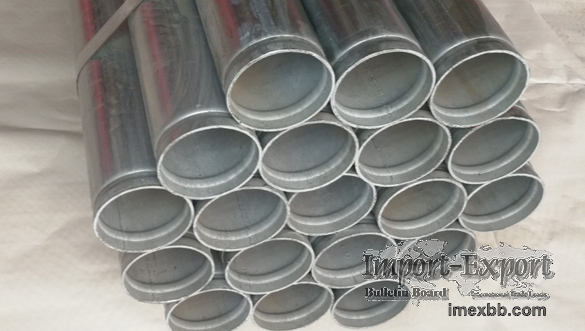

Steel Pipe

Steel pipes can be used to transport fluids and powdered solids, exchange heat,
and make mechanical parts and containers. It is also an economical type of
steel. The steel pipe is used to make the frame, strut and mechanical support
of the building structure, which can reduce the weight and save the metal, and
realize the factory mechanization construction. Making a highway bridge with
steel pipes not only can save steel, simplify construction, but also can
greatly reduce the area of coating protection, saving investment and
maintenance costs.

Tianchuang has different types of industrial steel pipe for sale, we can supply
different types of industrial steel pipe for different applications.

Standard Steel Pipe by Technology
Tianchuang pipes use the following technologies: Hot-dip galvanizing(The molten
metal reacts with the iron matrix to form the alloy layer); Galvanizing(Steel
interacts with zinc to form a zinc-ferroalloy on the surface of the pipe).

HDG Pipe

ASTM A795 fire control galvanized pipe
Black and galvanized greenhouse pipe
DN15-200 Round Pipe Q235 Q235B Hot Dip Galvanized Pipe for Gas Special Pipe
EN39 scaffolding pipe, S235GT, S355JOH galvanized scaffolding pipe
Galvanized EMT Pipe
Q195 DN15 200 HDG Round Pipe for Water, Air and Gas Pipe
Steel-plastic Composite Pipe
Galvanizing is a technology of rust protection. The steel and zinc are will
interact and become Zn-Fe alloy on the pipe surface. The layer of alloy can
provide protection from outside oxidation and extend the pipe use life. The
service life of galvanized pipe can be 20-30 years in the outdoor environment.

The thickness of zinc coating is 300g/m2 or as customer's request.

Pipe end: plain, groove, threaded with plastic caps or sockets.

Package: Bundled in hexagon, PVC package outside and slings on both sides.

OD of ERW and galvanized steel pipe is from 3/4”-8”(21.3mm-219mm)

OD Tolerance: as to BS1387

Thickness: 1.8mm-6.0mm, +/-5% tolerance.

Length: 6m, or as buyers request, -0mm/+20mm tolerance.

ERW Pipe

BS1387, ASTM A500, JISG3444, General Construction Pipe, Black ERW and
Galvanized Pipe
BS1387, ASTM A500, JISG3444, General Construction Pipe, Black ERW and
Galvanized Pipe
ERW means electric resistance welding, and it is a resistance welding by 10-500
kHz of high-frequency current.

Material: The raw material of the ERW pipe is a hot rolled steel coil which is
made of steel billet, and the usual material is Q195, Q215, Q235, Q355 in China
steel grade, which are the same material with S195, S235, S355 in Europe, and
SS400 in Japan.

The steel coil firstly will be cut into strip, the strip width is according to
the perimeter of the pipe, and then shaped by mold, welding, cutting,
straightening, inspecting, end smoothing, packing, and final storage or
dispatch.

Application: The pipes are used widely in construction and infrastructure, such
as scaffolding, water and gas delivery, fire control system, oil and heat
delivery, and other low-pressure liquid delivery.

The normal length is 6m, and it also can be a flexible length decided by
buyers.

We can produce ERW pipe according to GB/T3091-2015, JIS/G3444, EN10255, ASTM
A500, ASTM A795, BS1387, EN39 and other standards. The pipe end can be a plain
end, treaded with sockets, grooving end according to the above standards.

Steel Pipe by Standard
Our pipes meet various industry standards: BS 1387, EN 10255, ASTM A500, ASTM
A795, ASTM A53 and JIS/G3444, please click detail pages of steel pipes to know
more!

BS1387 Steel Pipe
EN 10255 Steel Pipe
ASTM A500 Steel Pipe
ASTM A795 Steel Pipe
ASTM A53 Steel Pipe
JIS/G3444 Steel Pipe
Steel Pipe by Material
For different countries, we can provide different materials,such as Q195, Q215,
Q235, Q355 for China, same material with S195, S235, S355 for Europe, and SS400
for Japan.

Q195 Steel Pipe
Q215 Steel Pipe
Q235 Steel Pipe
S235JR steel pipe
Steel Pipe by Application
Our pipes are used widely in construction and infrastructure, follow products
are our main products which can be applied in water, scaffolding, Fire control
systems and so on.

Gas Pipe
Scaffolding Pipe
Fire Fighting Pipe
Low Pressure Liquid Delivery Pipe
Construction Pipe
Greenhouse Pipe

Hebei Tianchuang Pipe Co., Ltd is a professional steel pipe company, we provide
china steel pipe, guard rail in highway, steel pipe production, standard pipe
products and etc. Want to know the industrial pipe sizes or industrial pipe
cost? Please contact us.
