Sulfuric Acid Transfer Pump

Sulfuric acid transfer pump:

Concentrated /thick Sulfuric acid pump Concentrated sulfuric acid pump on the
market are mainly fluorine plastic pump (F46) and cast iron pump, cast iron pump
advantage is cheap, suitable for conveying high concentration of concentrated
sulfuric acid; But if the occurrence of dilute sulfuric acid (sulfuric acid
concentration decreased), cast iron is not resistant to dilute sulfuric acid
corrosion will appear damage.

The advantage of fluorine plastic pump is suitable for conveying arbitrary
concentration of sulfuric acid, a wider range of application; The disadvantage is
that the price cost is higher than cast iron pump.

Dilute sulphuric acid pump At present, the main engineering plastic horizontal pump
and steel lining plastic horizontal pump are widely used in China.

Ultra high molecular weight polyethylene (UHMWPE) is used to make the flow parts of
engineering plastic pump and steel plastic lining pump, which has excellent
corrosion resistance, abrasion resistance and impact resistance.

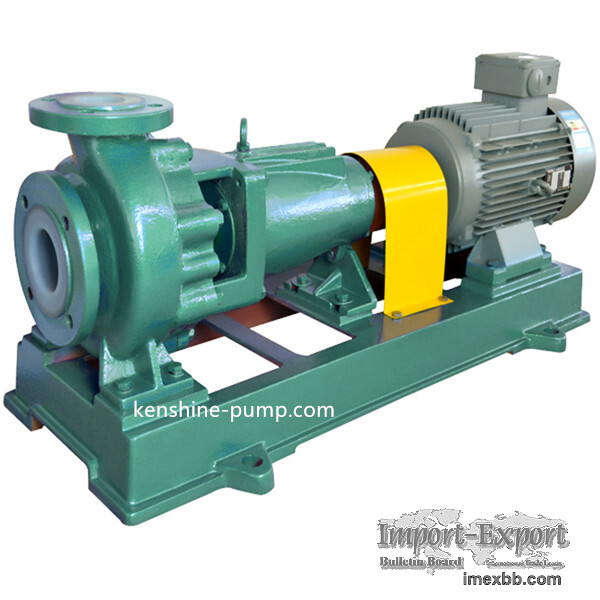

Dilute sulfuric acid pump is usually horizontal, single stage, single suction,
bracket type centrifugal pump, suitable for the temperature of -20 to 100 degree
celsius.

The seal of the pump adopts mechanical seal, dynamic seal and packing seal and
other sealing forms, which can not only transport dilute sulphuric acid clear
liquid, but also transport slurry containing solid particles and wastewater
containing various impurities.

Minimum Order: 1 sets
