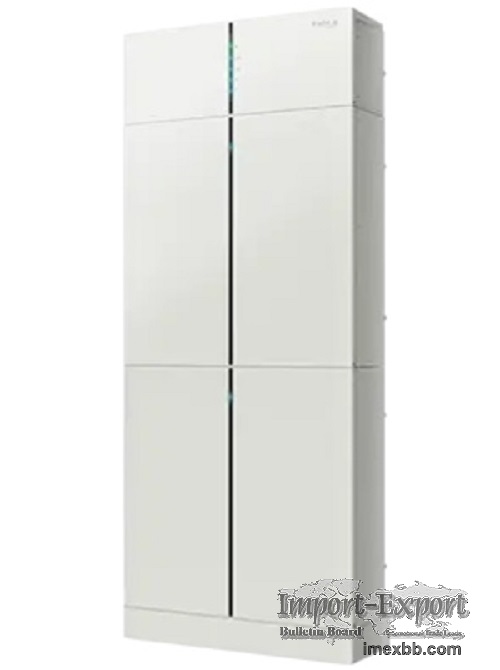

T-BAT-SYS-HV-3.0

Energy Safe Battery
T-BAT-SYS-HV-3.0
T-BAT H 3.0

T-BAT H 6.0

T-BAT H 9.0

U-BAT H 12.0

Safety

Prevent battery over-discharge with auto power replenishment technology

Utilize LiFePO4 battery type and high-performance processors

User-Friendly

Easy installation with a modular stacking design

Suitable for indoor/outdoor installation with floor mounting support (IP65
rated)

Reliability

Long life cycle of over 6000 cycles

Capable of operating at low temperatures due to unique heating technology

Monitoring

Remote fault diagnosis

Accessible through app or web portal

Why
T-BAT-SYS-HV-3.0
SolaX' , ;s solar batteries system effortlessly integrates with their Hybrid
inverter, offering unique battery heating technology, a safe LiFePO4 battery
type, and high-performance processors. Form an all-in-one system with our X1-
Hybrid G4 and the Matebox. With a modular design and easy installation, it
supports floor mounting, ensuring reliable operation in various temperatures.
The system prevents battery over-discharge, has an IP65 rating for
indoor/outdoor use, enables remote fault diagnosis, and includes multiple
communication interfaces. With internationally recognized brand devices, a long
life cycle, and safety certifications, it provides a trusted solution for users
worldwide.

T-BAT H 3.0
T-BAT H 6.0
T-BAT H 9.0
T-BAT H 12.0
Usable capacity 2.8kWh
Nominal voltage 102.4V
Max. charge/discharge current 30A
Cycle life [90% DOD] 6000 Cycles
Dimensions (W*H*D) MC0600(BMS): 482.5*173.5*153mm
HV10230(Battery): 482.5*471.5*153mm
Net weight MC0600(BMS): 7.5kg
HV10230(Battery): 34.5kg

If you want to know more applications of commercial ess, please visit our
website.

Minimum Order: 1 sets
