T-BAT-SYS-HV-5.0

Battery
T-BAT-SYS-HV-5.0
T-BAT H 10.0

T-BAT H 15.0

U-BAT H 20.0

Safety


IP65 protection level for reliable operation

Safe LiFePO4 battery type

User Friendly


Compact design for small spaces

Easy installation with modular stacking

Reliability


Long life cycle

95% battery roundtrip efficiency

Monitoring


Real-time tracking and monitoring

Remote diagnosis and control

Why
T-BAT-SYS-HV-5.0

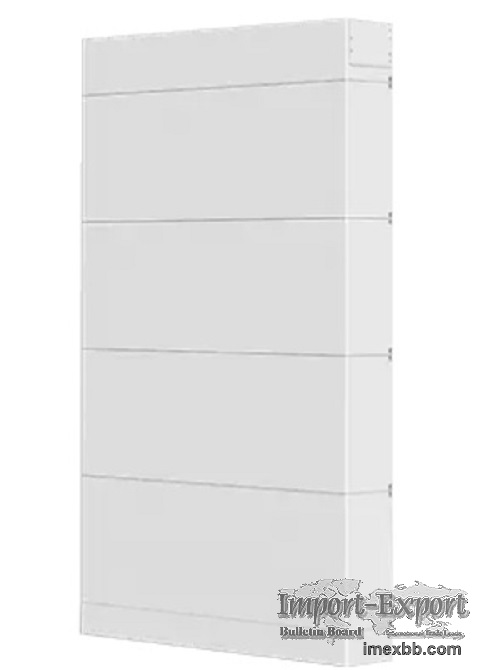

The T-BAT-SYS-HV-5.0 is an advanced and highly reliable energy storage system,
featuring cutting-edge technology for effortless control. With an impressive
battery roundtrip efficiency of 95% and a cycle life surpassing 6000 cycles, it
delivers top-notch performance. With secondary protection and an IP65 rating,
it ensures both safety and dependability. The system can be conveniently
mounted on the floor or wall, making it a perfect fit for any space. Experience
the power of our slim and modular design, delivering optimal energy solutions
with ease.

T-BAT H 10.0
T-BAT H 15.0
T-BAT H 20.0
Component TBMS-MC60060(BMS)+2*TP-HS50(Battery)
Usable capacity 9kWh
Nominal voltage 102.4V
Max. charge/discharge current 54A
Max. operating altitude 9843ft /3000m
Dimensions (W*H*D) TBMS-MC60060(BMS): 33.5*5.2*5.8in / 850*133*148mm
2*TP-HS50(Battery): 33.5*23.6*5.8in / 850*600*148mm
Base: 33.5*2.2*5.8in / 850*55*148mm
Net weight TBMS-MC60060(BMS): 22lb / 10kg
2*TP-HS50(Battery): 238lb / 108kg

We can offer high quality 10kwh solar system with battery and 20kwh solar
battery for sale, and the 20 kwh solar battery cost is reasonable, anything you
need, please contact us.

If you want to know more applications of residential ess, please visit our
website.

Minimum Order: 1 sets
