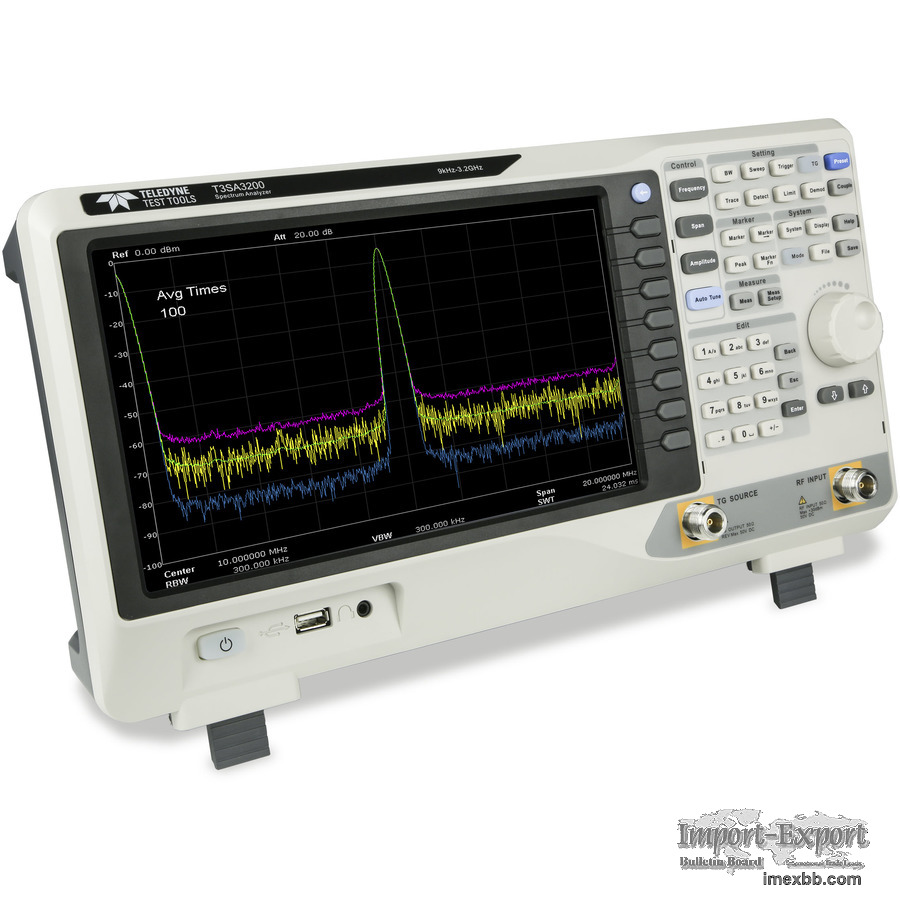

Teledyne LeCroy T3SA3200 sell by jansencalibration.com

Teledyne LeCroy T3SA3200: Advanced Spectrum Analysis with 3.2 GHz Frequency
Range and 10.1″ Display.

Product Overview:

The Teledyne LeCroy T3SA3200 Spectrum Analyzer is a high-performance
instrument designed for demanding applications in RF and microwave
engineering. With its wide frequency range of 9 kHz to 3.2 GHz, 10.1″ color
display, and advanced features, the T3SA3200 provides exceptional signal
analysis capabilities.

Features:

Frequency range: 9 kHz to 3.2 GHz
10.1″ color display with 800 x 480 resolution
Real-time bandwidth: 100 MHz
Maximum frequency span: 3.2 GHz
Sensitivity: -160 dBm/Hz
Dynamic range: 100 dB
Phase noise: -100 dBc/Hz at 10 kHz offset
Multiple measurement modes: spectrum, time domain, modulation analysis, and
more
Advanced triggering capabilities
Built-in tracking generator
USB, LAN, and GPIB interfaces

Specifications:

Frequency accuracy: ±10 ppm
Amplitude accuracy: ±1 dB
Resolution bandwidth: 1 Hz to 10 MHz
Video bandwidth: 1 Hz to 10 MHz
Sweep speed: 100 ms/div to 10 s/div
Dimensions: 17.3″ x 13.4″ x 5.5″
Weight: 15 lbs

Minimum Order: 1 pieces
