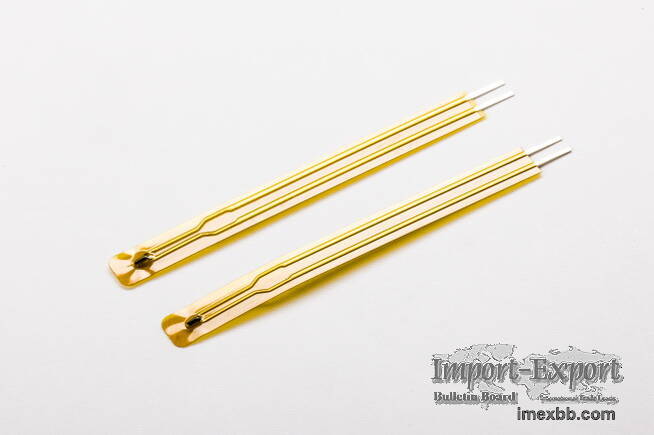

Thin Film Thermistor

Details
Material: Semiconductor ceramics/High temperature film

Applicable temperature range：-30~90℃

Output signal: analog signal output

Advantages
1. The product is a thin film thermistor

2. Good stability and high reliability

3. Wide resistance range: 2~500KΩ

4. High resistance and B value accuracy

5. Glass package, can be used under harsh conditions such as high
temperature and high humidity

6. Small size, sturdy structure, easy for automatic installation

7. Operating temperature range -30~+90℃

8. Fast heat induction and high sensitivity

Application
1. Temperature control and temperature detection of household appliances
such as induction cooker, electric pressure cooker, rice cooker, electric
oven, disinfection cabinet, water dispenser, microwave oven, electric
heater, etc.

2. Temperature detection and temperature compensation of medical equipment
(such as copiers, printers, etc.)

3. Temperature control and testing of industrial, medical, environmental
protection, meteorological, and food processing equipment

4. Temperature protection of rechargeable battery pack and charger

5.Temperature compensation of instrument coils, integrated circuits, quartz
crystal oscillators and thermocouples

General parameters

ResistanceR25℃： 5K 10K 15K 20K 50K 100K 200K
B value(R25/R50) 3380 3950 3470 4200 3977 4100 4200
Tolerance 1% 2% 3% 5%
Note: What is the B value:
A material constant that describes the resistance-temperature relationship.
The value of B can reflect the scale of resistance to temperature change
between two specific temperatures. As the temperature changes, the
resistance value of a product with a large B value under the same conditions
changes more, that is to say, it is more sensitive.

TOPOS is a sensors suppliers, we provide sensor solutions, smd thermistor,
thermistor resistor and etc. Want to know more? Please contact us.
