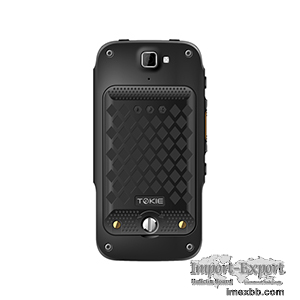

TK1000 Plus - 4G LTE Radio

TK1000 Plus - 4G LTE Radio
The POC device is an upgrade to our flagship TK1000 model with longer screen to
enable users that require more interaction with the applications while
everything stays the same.
Our products are efficient, cost effective and deliver more benefits. Welcome
to choose TOKIE!

Operating System
TOKIE customize Android 8.1 Oreo

Hardware Platform
MTK6739 Quad-Core A53 1.5GHz 64bit


Network Type
Support 2G, 3G(WCDMA, TD-SCDMA, C2K), 4G(FDD LTE/TDD LTE)

RAM
1GB RAM + 8GB ROM


Display
Corning® Gorilla® Glass 3, TFT 3.1“IPS, 800 x 480

GPS
GPS, AGPS & GLONASS, dual-mode positioning

TOKIE
WiFi
802.11 a/b/g/n, dual-band

Bluetooth
BT4.0


Sensor
G-Sers , or, Proximity Sensor, Light Sensor, E-Compass

USB Interface
Micro USB 2.0, support OTG


SIM Card
Micro-SIM single card

Encoding / Decoding Capabilities
H.264 high profile, 720P 30FPS


Speaker
36mm ⏀ 2.0W @ 90dB

Microphone
Sensitivity -42dB


Rear Camera
8 million pixels camera

Front Camera
2 million pixels camera


Video Quality
Support 720P video recording

Indicator LED
Single 3-colors LED


M6
Support External Speaker, Mic, Earphone, UART

Working Environment
Temperature -20 °C - 60 °C, humidity 20% - 90%


Degree of Protection
IP67, water & dust resistance, anti-drop 1.5 meters

Weight
200g


Battery Capacity
3,600mAh, replaceable

Size
119.5mm x 61.5mm x 23.5mm

Minimum Order: 500 pieces
