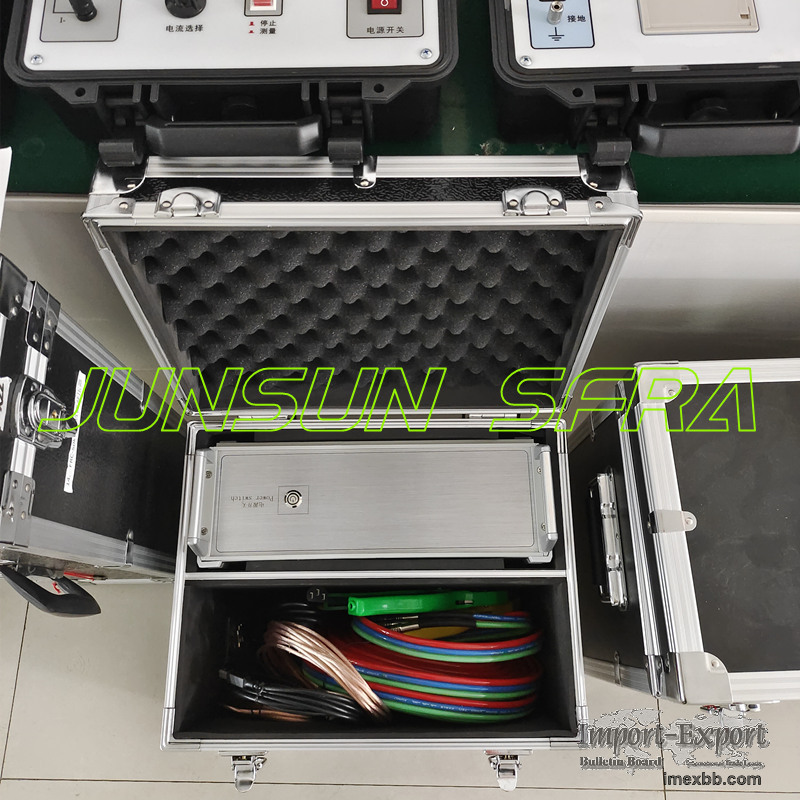

Transformer Winding Deformation Test SFRA Sweep Frequency Response Analyzer

1. Use high-speed, high integration microprocessor to sample and control.
2. Use USB to connect the notebook PC and device.
3. Communication wireless Bluetooth interface between the laptop and
instruments.
4. Hardware cassette mechanism adopts DDS (from America), can correctly
detect the breakdown :distortion, swell, shift, tilt, inter-turn short
circuit deformation and contacting short circuit inter-phase.
5. High-speed, dual channel, 16 bit A/D sampling (the wave from curve will
change obviously if change the tapping switch during the field tests.).
6. The software can adjust the output signal range, the maximum amplitude
peak±10V.
7. The computer automatically generating the test results to be Word
document.
8. Use precision, high stability components, the same phase repeat test,
measurement repetition rate >99.5%.
9. Finished circuit boards, surface specially treatment with anti-water
pollution and harmful gases.
10. The device with two measurement system: linear scan and sectional scan.
11. Amplitude-frequency characteristic comply the national technical
specifications.
12. Test data automatic analysis system, horizontal compare the similarity of
A, B ,C.

Minimum Order: 1 sets
