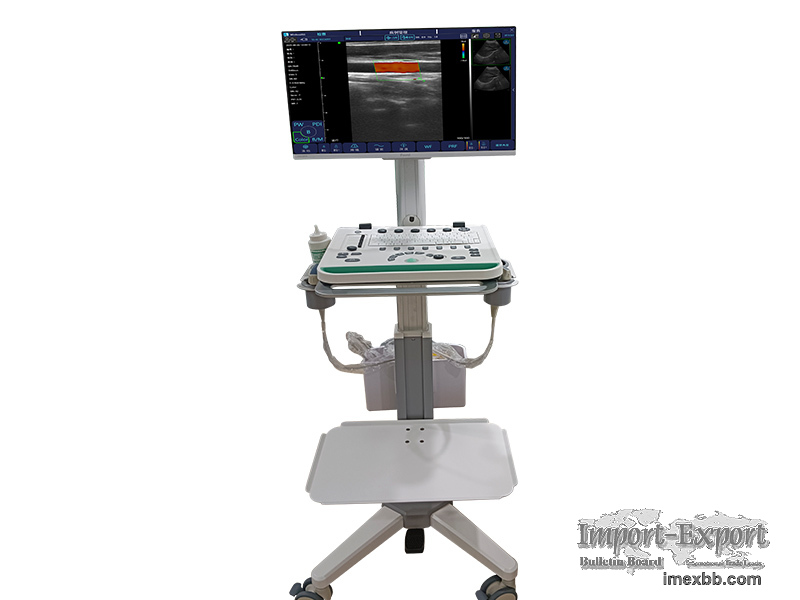

Trolley Color Doppler Ultrasound machine

Standard Configuration:

Ultrasound device x 1 unit, Convex probe x 1pc



Optional probes and accessories:

Linear, Phase Array, Micro-Convex, Transvaginal, Transrectal, puncture
guide, Tablet, Trolley, external

battery, Teleconsultation system



Specification:

- Screen: 20inch LCD

- Image mode: B、B/M、Color、PW、PDI

- Channel of Ultrasound: 64

- Gain : 30db-105db

- Denoice:0-1-2-3-4

- Dynamic Range：40-50-60-70-80-90-100-110

- Probe type：Convex, Linear, Phase Array, Micro-Convex, Transvaginal,
Transrectal

- Probe Connection Port: 2

- Frequency, Scanning Depth, Angle/Width:

Convex: 3.5MHz/5MHz, 90/160/220/305mm, 60°

Linear: 7.5MHz/10MHz，20/40/60/100mm, 40mm

High Frequency Linear：10MHz/14MHz,

20/30/40/55mm, 25mm

Phase Array：2.2MHz/3.6MHz, 40-100mm, 80°

Micro-Convex: 3.5MHz/5MHz, 90/130/160/200mm, 88°

Transvaginal: 6.5MHz/8MHz, 40/60/80/100mm, 149°

Biplane Transrectal: Convex 6.5MHz/8MHz,

40/60/80/100mm，149°；Linear 7.5MHz/10MHz,

20/40/60/100mm, 40mm

- Image Adjust: BGain, TGC, DYN, Focus, Depth, Harmonic, Denoise, Color
Gain, Steer, PRF

- Cineplay: auto and manual, frames can set as 100/200/500/1000

- Puncture Auxiliary Function: In-Plane puncture guide line, Out-Plane
puncture guide line, automatic blood vessel measurement.

- Measure: Length, Area, Angle, Heart Rate, Obstetrics

- Image Frame Rate: 18f/s

- Operating System : Windows

- Image Saved: jpg, avi and DICOM format, storage volume 120G

- Image and Report Printing: compatible with most printers

- Weight: 4Kg - Image and report print: can work with most model ink/laser
printer

- Remote transmission: The device can be wired/wire less Internet access,
images and information can be transmitted through the software's built-in
DICOM and WorkList transmission function or other software

- Remote Diagnosis: can install any remote diagnosis software and work

- Battery Duration Time: built-in battery, 2 hours

- Trolley size: lifting height 770~1070mm, Keyboard countertop 440 * 265mm,
Printer countertop 480 * 480mm

- Packaging size: 690 * 555 * 235mm

- Net Weight: 20KGS, gross weight : 25KGS in total

Minimum Order: 1 sets
