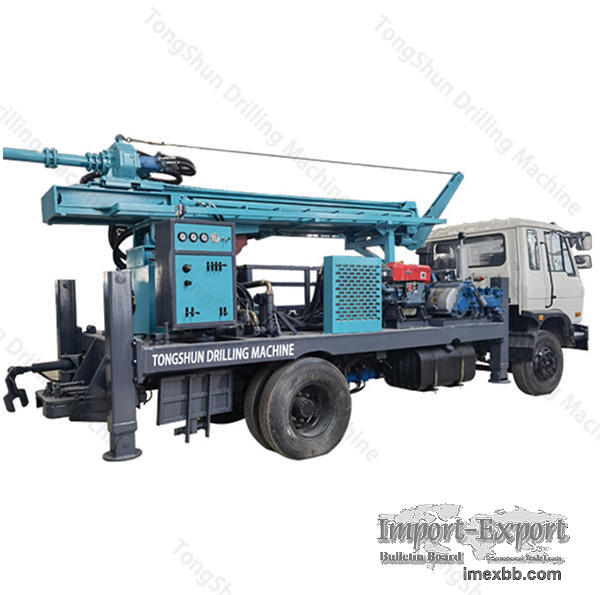

TSHY-800 Truck Mounted Wate Well Drilling Rig

TSHY-800 Truck Mounted Wate Well Drilling Rig
Product Description
The Fusion of Portability and Efficiency
Portability Advantage: Adaptable to changing job sites, our water well drilling
rig is the ideal choice for your projects. Lightweight, easily transportable,
and quick to deploy, it enables rapid drilling operations within short time
frames.
Flexibility and Adaptability: Whether in rural or urban settings, our water
well drill pipe well drilling rig navigates various terrains and environments
with ease. Its efficient operational performance makes it the preferred choice
for narrow spaces and irregular terrains.
Cost-effectiveness: Providing efficient drilling at an affordable price, our
water well drill pipe well drilling rig offers a competitive solution for
small-scale projects or those requiring flexibility.
Technological Innovation and Support: Beyond delivering high-performance, our
rig comes with professional technical support and customization options. Our
technical team ensures the efficient and safe completion of your drilling
tasks.
Truck Mounted Wate Well Drilling Rig Product Features
Versatile Drilling Capability: Drilling diameter range 115-650mm.
Enhanced Efficiency: Drilling depth 800m; Penetration efficiency 15-35 m/h.
Adaptive Specifications: Drill pipe diameter 102mm, 108mm, 114mm; Length 2.0m,
3.0m, 4.5m, 6.0m.
Specifications
Equipped capacitor 132kW
Using air pressure 1.7-3.5MPa
Dimension 8400×2500×3100mm
Climbing angles 30Max.
Swing torque 8500-17000 N.m
Rig lifting force 30T
Car engine Cummins EQ6BT5.9 ,Six-Cylinder Diesel 190 HP
