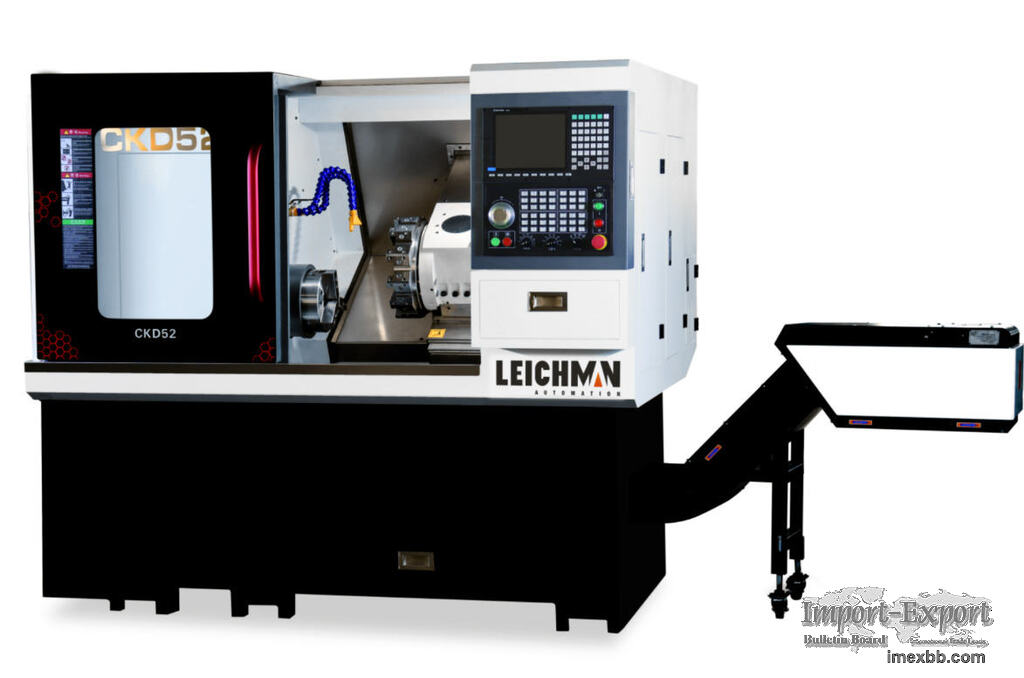

Turret CNC Lathe CKD52

Turret CNC Lathe CKD52
Product Description
The CNC Lathe machine tool control system adopts Taiwan SYNTEC system, and it
can also be equipped with CNC systems produced by other companies according to
user requirements.
The base and bed of the machine tool are integrally cast iron, which has strong
shock resistance and is not easy to deform. The bed is inclined at 30°, and
the large carriage and tool post are inclined, which makes the operation of the
machine tool and chip removal very convenient. The appearance design of the
machine tool is beautiful, and it takes up little space.
Item Unit CKD52
Capacity Max swing over bed mm 500
Max. machining diameter mm 480
Max. machining length mm 380
Travel X axis travel mm 250
Z axis travel mm 400
Precision Spindle runout mm 0.004
X/Z axis reposition precision mm 0.002
Spindle Spindle speed rpm 4000
Chuck diameter inch 8
Spindle nose A2-6
Spindle bore mm 63
Max bar diameter mm 52
Slant Bed CNC Turret Lathe with Tailstock｜CNC Lathe with X Z Axis
The main shaft adopts a high-precision main shaft, which contains Swiss SKF
precision main shaft bearings. The main shaft flange can be directly installed
with a three-jaw self-centering hydraulic chuck or other elastic chuck.
The transmission part of the machine tool adopts the high-precision Japanese
THK ball screw and high-speed linear slide of the well-known Japanese THK 35-
type. The X-axis and Z-axis adopt the high-rigidity linear slide, and the track
and the track are optimized through calculation. Span, low resistance, high
rigidity, high precision, displacement speed up to 24m/min, provide work
efficiency and shorten processing time.
