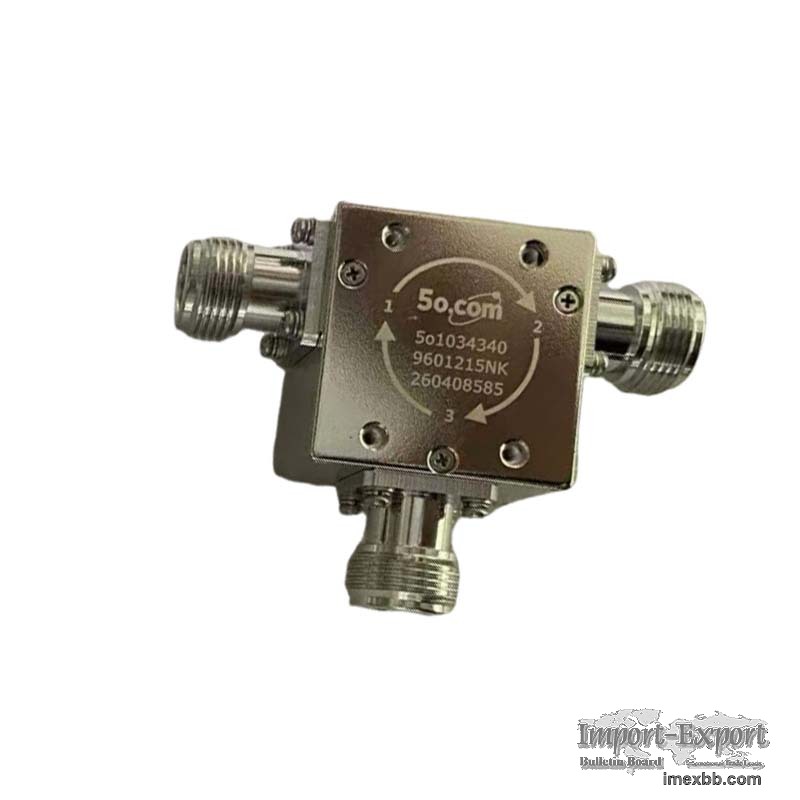

UHF Band 960 to 1215MHz RF Coaxial Circulator for Communication & Radar

High-performance UHF band RF coaxial circulator operating from 960MHz to
1215MHz, designed for professional communication systems, radar applications,
and RF transceiver modules. Featuring low insertion loss, high isolation,
excellent VSWR, and wide temperature stability, it ensures unidirectional
signal transmission, protects power amplifiers, minimizes interference, and
delivers reliable performance for ground radar, tactical communication, base
station systems, and various UHF microwave equipment. Built with a compact
structure, high power handling, and durable design, it is widely applied in
mission-critical communication and radar RF front-end solutions.

Model Number:5o10343409601215NK
Frequency Range:960~1215MHz
Insertion Loss:0.3dB
Isolation:20dB
VSWR:1.25
Forwa , rd Power:100W
Reverse Power:100W
Connector Type:SMA(Male/Female), N(Male/Female)
Operation Temperature:40~+85℃
Storage Temperature:-55℃~+125℃
Dimension:34*34*22mm ,
Impedance:50Ω

5o.com is a modern high-tech enterprise specializing in the research,
development, production, and sales of RF microwave passive components. Focusing
on independent innovation, the company primarily manufactures microwave passive
components such as RF isolators, circulators, coaxial loads (terminals),
coaxial attenuators, power splitters, waveguide-to-coaxial converters,
directional couplers, filters, and duplexers/multiplexers. These products are
widely used in 5G communications, satellite navigation, radar electronic
countermeasures, and aerospace applications.

Minimum Order: 1 pieces
