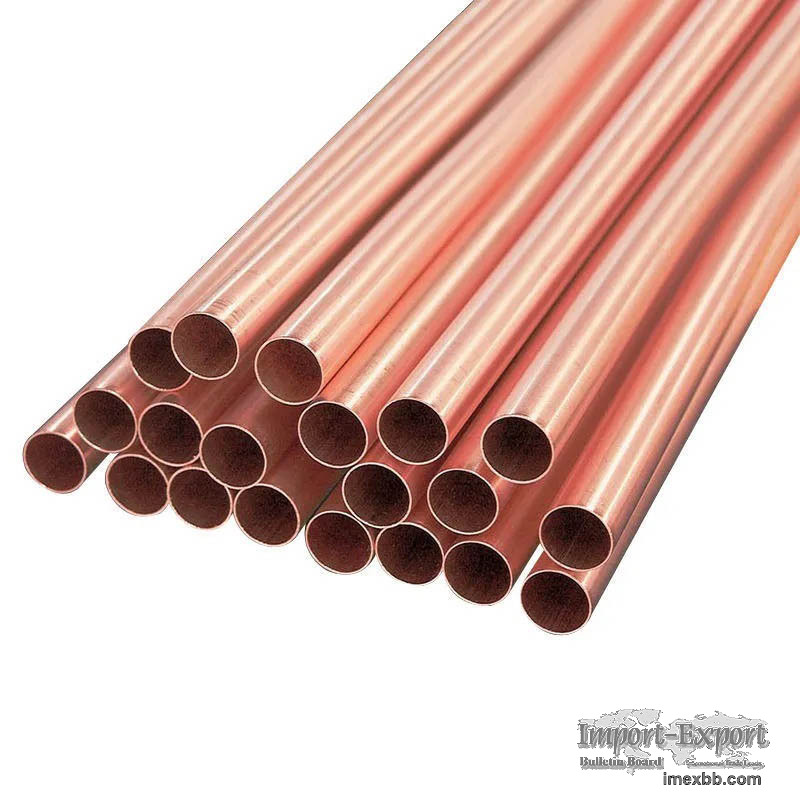

UNS C70600 90/10 Copper Nickel Seamless Pipes for Marine Cooling and Seawat

In modern shipping and seawater desalination industries, equipment reliability
and durability are essential. UNS C70600 90/10 copper nickel seamless pipes are
high-performance piping materials that offer exceptional corrosion resistance,
thermal stability, and mechanical properties. They are an ideal choice for
marine cooling systems and seawater desalination equipment.

What Is UNS C70600 90/10 Copper Nickel Pipe?
UNS C70600, also known as CuNi 90/10 or CuNi10Fe1Mn, is a copper-nickel alloy
based on copper with approximately 10% nickel, as well as controlled additions
of iron and manganese. The term “90/10” generally refers to the approximate
ratio of copper and nickel in the alloy-about 90% copper and 10% nickel.
Compared with standard copper pipes or carbon steel pipes, C70600 copper nickel
alloy provides superior corrosion resistance in flowing seawater, mildly
polluted seawater, saltwater, and certain chloride-containing media. During
service, a dense and stable protective film forms on the material surface,
improving its long-term performance in marine environments.
C70600 copper nickel alloy also offers good thermal conductivity and
fabrication properties. It can be welded, bent, expanded, flared, and processed
using other conventional pipe fabrication methods. Therefore, it is highly
suitable for complex piping layouts in shipbuilding and offshore engineering
applications.

Main Advantages of C70600 90/10 Copper Nickel Seamless Pipes
1. Outstanding Seawater Corrosion Resistance
90/10 copper nickel alloy performs reliably in both stagnant and flowing
seawater. It resists chloride-induced pitting and crevice corrosion and can
withstand alternating wet-dry exposure, tidal splash zones, and seawater
corrosion.
A dense protective surface film forms naturally on the pipe, helping isolate
the base material from seawater attack over the long term and significantly
reducing the risk of pipe perforation and leakage.
2. Natural Resistance to Marine Biofouling
Copper nickel materials naturally inhibit the attachment of marine organisms,
including barnacles, algae, and shellfish. This helps reduce biological fouling
in pipelines, minimize blockage and heat-transfer efficiency losses, and lower
cleaning and maintenance costs.
These properties make C70600 pipes particularly suitable for seawater cooling
and desalination systems requiring long-term continuous operation.
3. Excellent Heat Transfer Performance
C70600 copper nickel pipes offer good thermal conductivity and stable heat-
transfer efficiency. They are suitable for marine engine coolers, condensers,
seawater desalination heat exchangers, and other heat-transfer equipment,
helping cooling and water-production systems operate efficiently and
continuously.
4. High Strength and Good Ductility
The Pipes provide balanced mechanical properties and can be bent, expanded, and
flanged during fabrication. They offer good fatigue resistance and can
withstand seawater pressure fluctuations.
The seamless structure eliminates potential corrosion concerns associated with
longitudinal weld seams, making these pipes suitable for high-pressure seawater
piping systems.
5. Long Service Life and Low Maintenance Cost
Under properly controlled seawater service conditions, C70600 copper nickel
pipes provide a long service life and are less susceptible to unexpected
leakage. This helps reduce economic losses caused by shutdowns, inspections,
and repairs in vessels and seawater desalination plants.


Main Applications
Shipbuilding Industry
Ship seawater cooling systems
Condensers and heat exchangers
Ballast water pipelines
Main engine and auxiliary engine cooling circuits
Piping systems for commercial vessels, offshore support vessels, and research
ships
Seawater Desalination Projects
Heat exchanger Pipe bundles for reverse osmosis systems
Multiple-effect distillation (MED) systems
Multi-stage flash (MSF) desalination systems
Seawater inlet and outlet pipelines
Other Marine Engineering Applications
Seawater pipelines on offshore platforms
Seawater cooling pipelines for coastal power plants
Port seawater conveying systems

Minimum Order: 1 tons
