USB3.1 Hybrid AOC-Active Optical Cable

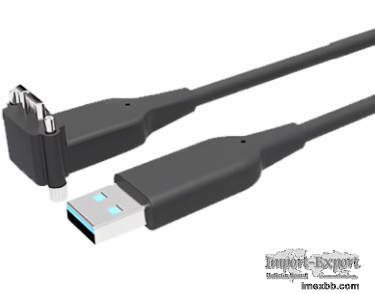

The FUBC-31A0B3-XX USB 3.1 Gen 1(5Gbps) Hybrid AOC-Active Optical Cable, type A
Male to angled Micro-B offers an Up/Down 90° angled for Micro-B
connection,especially friendly to the space limitation.

Employing a sleek, high-flex (4.8 mm) optical fiber as its transmission medium, the
USB 3.1 Hybrid Active Optical Cable innovatively integrates copper for supplying
power to both the cable’s active components and the connected device(s),
particularly when they’re bus-powered.

Extending the USB 3.1 bus to a remarkable 20 meters or 65 ft, this USB 3.1 Hybrid
Active Optical Cable ensures a maximum bandwidth speed of 5 Gbps. With a Micro-B
connector boasting screw lock support, it’s perfectly suited for machine vision,
industrial, and robotic applications.

Ideal replacement for:

Unibrain USB AOC Cables;
L-COM USB 3.1 Active Optical Cables;
Compufox USA USB 3.0 AOC;
Edmudoptics USB 3.0 Camera Link Cable;
Intercon-1 USB 3.1 Hyrbid Active Optical Cable
Highlight Features:

Max Transmission Speed: USB 3.1 @ 5Gbps
Maximum Transmission Length: 20 meters (65ft), USB 2.0 up to 50 meters (115ft)
Power Supply: Support 5V 900mA max to the remote device
Easy Installation: Hot-plugging, no driver required
EMI Resistance: High resistance to electromagnetic interference, ensuring a safe,
radiation-free environment
Customizable: Up to 20m maximum length, custom length(5m/10m/15m/20m), logo, and
packaging available
Specifications:

Host side: USB 3.1 Type-A plug, dimensions: 34mm x 16mmx 8mm
Device side: USB 3.1 Micro-B plug with locking screws, dimensions: 36mm x 22mm x8mm
Cable diameter: 4.8 mm
Bend radius: 40 mm
High flex rated for for >10 million cycles for bending stroke of 1m, velocity 80
cycles/min
Tensile Strength(Long Term/Short Term): 150N/300N
Crush Resistance (Long Term/Short Term)/100mm: 500N/1000N
Supply voltage: 4.75 – 5.25 V
Power dissipation: 0.95 W
Device supply current: Max 5V – 900mA (up to 20m), 600mA (21m-50m)
Operating conditions: -10’C -55′C, 15%-80% humidity
Max temperature gradient: 6′ C per hour
Compliance: FCC/CE/RoHS

Minimum Order: 10 pieces
