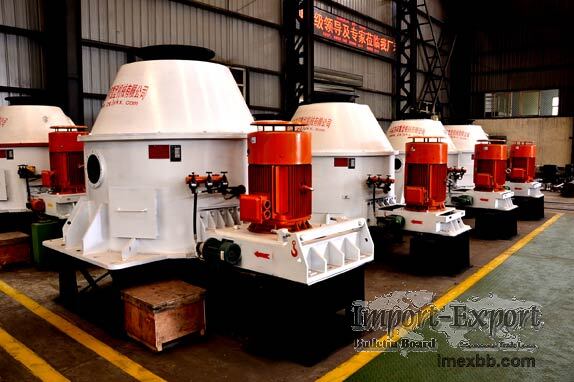

Vertical Centrifuge

The vertical centrifuge machine is made up of the screen which diameter range
from 700 to 1,000 mm , the rotor body (including the blade), transmission,
body, lubrication system, etc.

Application of Vertical Centrifuge Machine
The vertical centrifuge is fit for material dehydration, generally used for
coal, salt and other materials. Our coal centrifuge has helped a lot of
customers with their industrial projects.

Working Principle of Vertical Centrifuge Machine

Wet materials are feed into the mouth of centrifuge, then are accelerated by
the rotated distribution cone and move rapidly towards the space between screen
and rotor. With the centrifugal force, the smaller particles of material get
closed to the screen surface, liquid and part of the particle size of less than
0.5 mm of material get across the material space and screen gap, then are
thrown out of the screen, the larger particles of materials soon slipped into
spiral nesting mouth along the screw blade with the action of gravity and
centrifugal force fine material attached to the screen surface are discharged
by the scraper centrifuge through blade action, while the liquid through the
screen and fine materials are thrown into the water tank then outflow through
the drain, so as to achieve a solid-liquid separation.
