Volvo 250kVA Diesel Generator Set with Stamford Alternator

Genset Model: XP-V275
Prime Power: 250 kVA
Standby Power: 275 kVA
Voltage: 380V/400V/415/440V
Frequency: 50Hz
Overall Dimensions: 2650×1120×1670 mm
Weight: 2000 kg

Engine Specification
Manufacturer / Model VOLVO/TAD841GE
Air intake system Turbocharged, Air/Air inter cooling
Fuel system Elec. Injection, Common Rail
Cylinder arrangement 6 in line
Displacement 7.7L
Bore and stroke 110×135mm
Compression ratio 17.5
Rated speed 1500rpm
Max. Standby power at rated speed 242kW
Governor type EMS2
Fuel consumption @ 100% (Prime Power) Load 198g/kWh 53 L/h
Fuel consumption @ 75% (Prime Power) Load 204/kWh 41 L/h
Fuel consumption @ 50% (Prime Power) Load 214g/kWh 30 L/h

Alternator Specification (Stamford UCDI274K1)
Number of Phase 3
Connecting Type 3 Phase and 4 Wires, Y type connecting
Number of Bearing 1
Power Factor 0.8
Protection Class IP23
Altitude ≤1000m
Exciter Type Brushless exciting
Insulation Class/Temperature Rise H/H
Telephone Influence Factor (TIF) ＜50
THF ＜2%

Minimum Order: 1 sets

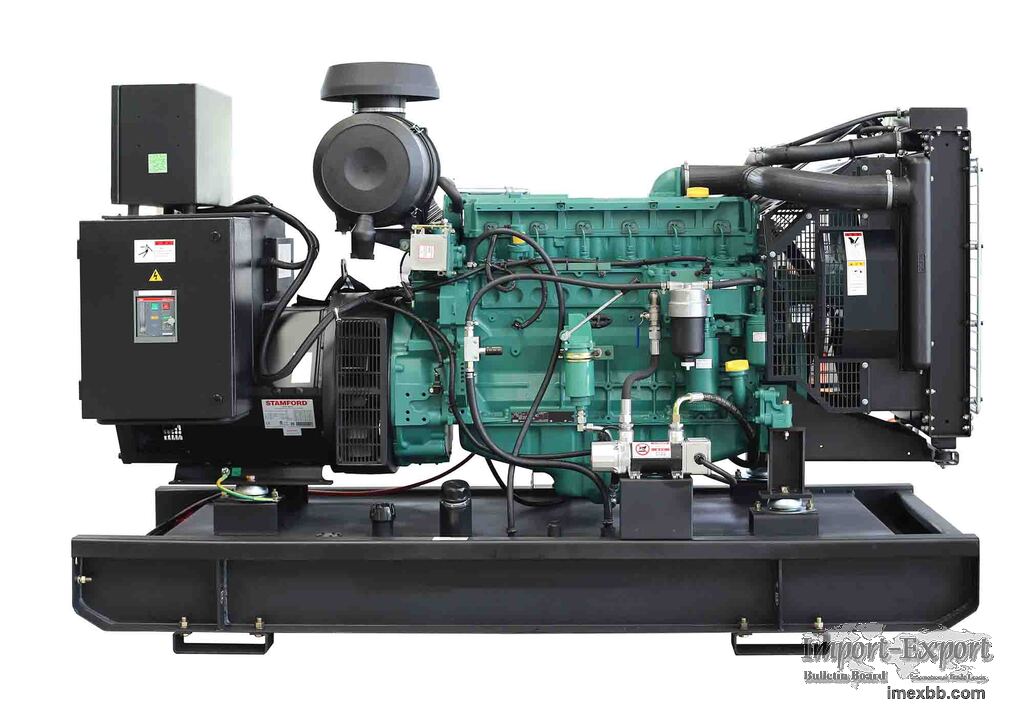

Volvo 250kVA Diesel Generator Set with Stamford Alternator
