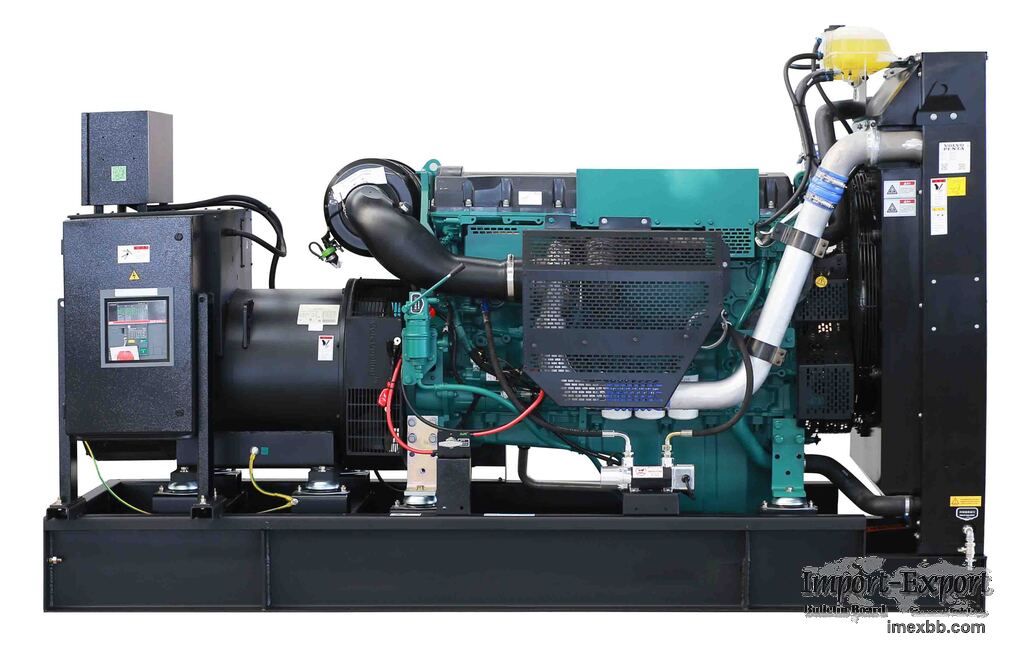

Volvo 500kVA Diesel Generator Set with Stamford Alternator

Genset Model: XP-V550
Prime Power: 500 kVA
Standby Power: 550 kVA
Voltage: 380V/400V/415/440V
Frequency: 50Hz
Overall Dimensions: 3200×1200×1950 mm
Weight: 3250 kg

Engine Specification
Manufacturer / Model VOLVO/TAD1346GE
Air intake system Turbocharged, Air/Air inter cooling
Fuel system Elec. Injection, Elec. Fuel System
Cylinder arrangement 6 in line
Displacement 12.78L
Bore and stroke 131×158（mm）
Compression ratio 17.8
Rated speed 1500rpm
Max. Standby power at rated speed 470KW (with fan)
Governor type EMS2
Fuel consumption @ 100% (Prime Power) Load 191 g/kWh 99L/h
Fuel consumption @ 75% (Prime Power) Load 198 g/kWh 77L/h
Fuel consumption @ 50% (Prime Power) Load 199 g/kWh 52L/h

Alternator Specification (Stamford S5L1D-C4)
Number of Phase 3
Connecting Type 3 Phase and 4 Wires, Y type connecting
Number of Bearing 1
Power Factor 0.8
Protection Class IP23
Altitude ≤1000m
Exciter Type Brushless exciting
Insulation Class/Temperature Rise H/H
Telephone Influence Factor (TIF) ＜50
THF ＜2%

Minimum Order: 1 sets
