Volvo 750kVA Diesel Generator Set with Stamford Alternator

Genset Model: XP-V825
Prime Power: 750 kVA
Standby Power: 825 kVA
Voltage: 380V/400V/415/440V
Frequency: 50Hz
Overall Dimensions: 3600×1400×2100 mm
Weight: 4200 kg

Engine Specification
Manufacturer / Model VOLVO/TWD1744GE
Air intake system Turbocharged, Water/Air inter cooling
Fuel system Elec. Injection, Elec. Fuel System
Cylinder arrangement 6 in line
Displacement 17.26L
Bore and stroke 149×165
Compression ratio 16.5
Rated speed 1500rpm
Max. Standby power at rated speed 710kW
Governor type ECM4
Fuel consumption @ 100% (Prime Power) Load 194 g/kWh 150L/h
Fuel consumption @ 75% (Prime Power) Load 194 g/kWh 113L/h
Fuel consumption @ 50% (Prime Power) Load 197 g/kWh 78L/h

Alternator Specification (Stamford S5L1D-H41)
Number of Phase 3
Connecting Type 3 Phase and 4 Wires, Y type connecting
Number of Bearing 1
Power Factor 0.8
Protection Class IP23
Altitude ≤1000m
Exciter Type Brushless exciting
Insulation Class/Temperature Rise H/H
Telephone Influence Factor (TIF) ＜50
THF ＜2%

Minimum Order: 1 sets

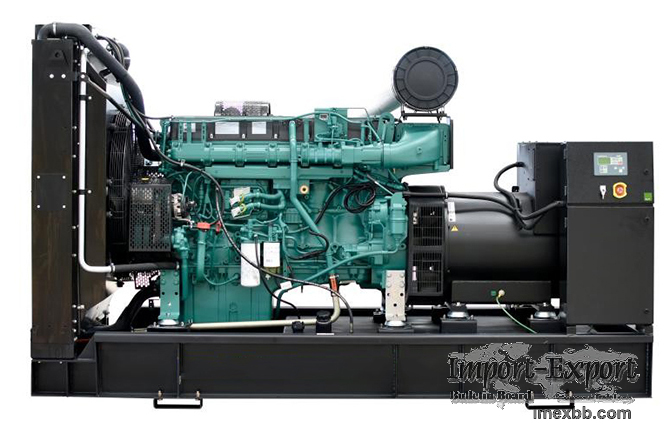

Volvo 750kVA Diesel Generator Set with Stamford Alternator
